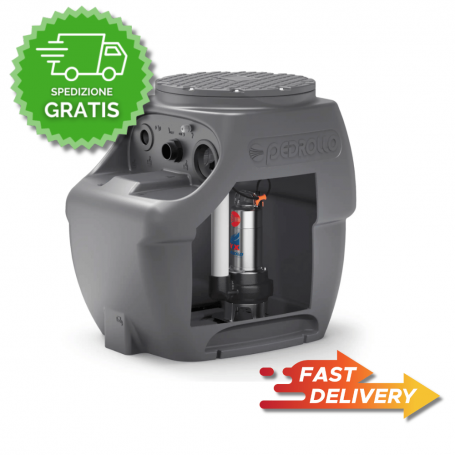

The Pedrollo SAR250 Lifting Station with TOP 5 is suitable for residential and civil systems where a compact wastewater station with higher flow rate and head is needed.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and 10 m cable as standard.
- Usage: Drainage (Clear Waste Water)
- Power (P2): 0.92 kW - 1.25 HP
- Max flow rate: 360 l/min - Max head: 15.0 m
- Inlets: I DN 110 - U 1½" - S DN 50
- Weight: 54.3 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Pedrollo sar250 wastewater lifting station with top 5 1.25 hp - drainage
The Pedrollo SAR250 Lifting Station with TOP 5 is suitable for residential and civil systems where a compact wastewater station with higher flow rate and head is needed.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and 10 m cable as standard.
- Usage: Drainage (Clear Waste Water)
- Power (P2): 0.92 kW - 1.25 HP
- Max flow rate: 360 l/min - Max head: 15.0 m
- Inlets: I DN 110 - U 1½" - S DN 50
- Weight: 54.3 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Overview
The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer system is distant or cannot be reached by gravity.
The SAR 250 - TOP 5 version can be installed in the floor or underground, indoors or outdoors.
Typical Applications.
- Lifting Wastewater in Areas Without a Slope to the Sewer System
- Residential and Municipal Drains
- Indoor/Exdoor, Floor-mounted or Underground Installation
Main Components
- Tank: Polyethylene - 250 liters - Non-Trackable Lid, Walkable Up To 100 kg
- Electric pump: Submersible Single-phase
- Power Cable: 10 m (Standard)
Model Performance
- Pump: TOP 5 - Usage: Drainage (Clear Waste Water)
- Power (P2): 0.92 kW - 1.25 HP
- Max Flow Rate: 360 l/min
- Maximum head: 15.0 m
Connections, Overall Dimensions & Weight
- Outlets: I DN 110 - U 1½" (Male Threaded) - S DN 50
- Overall dimensions (mm): 902 x 550 x 884
- Weight: 54.3 kg
Selection Tip
TOP 5 is suitable when you want a SAR250 for drainage with performance up to 360 l/min and head up to 15.0 m.
Notes And Options
- Version With Float (On Request)
- Three-phase Submersible Electric Pump (On Request)
- Alarm Kit (Code KSKIT-ALARM) (On Request)
- 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
- Ball Check Valve And Delivery Ball Valve (On Request)
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.92
- CAPACITY
- 250
