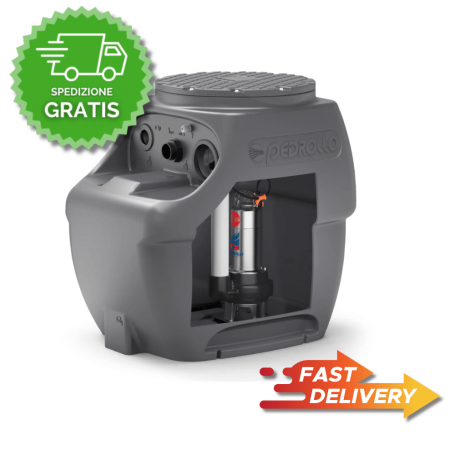

The Pedrollo SAR250 Lifting Station with VXm 15/35 electric pump is suitable for lifting sewage when the sewer is distant or cannot be reached by gravity, with floor or underground installation in residential and civil environments.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and 10 m cable included. Vortex version for dirty wastewater.
- Usage: Vortex (Dirty Wastewater).
- Power (P2): 1.1 kW - 1.50 HP
- Max flow rate: 500 l/min - Max head: 13.5 m
- Connections: I DN 110 - U 1½" - S DN 50
- Overall dimensions (mm): 902 x 550 x 884 - Weight: 61.0 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Waste water lifting station pedrollo sar250 with vxm 15/35 1.50 hp - vortex
The Pedrollo SAR250 Lifting Station with VXm 15/35 electric pump is suitable for lifting sewage when the sewer is distant or cannot be reached by gravity, with floor or underground installation in residential and civil environments.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and 10 m cable included. Vortex version for dirty wastewater.
- Usage: Vortex (Dirty Wastewater).
- Power (P2): 1.1 kW - 1.50 HP
- Max flow rate: 500 l/min - Max head: 13.5 m
- Connections: I DN 110 - U 1½" - S DN 50
- Overall dimensions (mm): 902 x 550 x 884 - Weight: 61.0 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Overview
Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rainwater and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets) when the sewer system is distant or cannot be reached by gravity. Underground or in-floor installation, indoors or outdoors, for multi-unit buildings.
Typical Applications.
- Lifting Wastewater In Areas Without Drainage By Gravity
- Indoor or Outdoor Installation, Underground or Underground
- Residential And Civil Uses (Including Toilets)
Components
- Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To 100 kg
- Electric pump: Submersible Single-phase
- Power Cable: 10 m (Standard Equipment)
- Outlet: Ball Check Valve And Ball Valve In Outlet Piping
Model Performance
- Pump: VXm 15/35 - Usage: Vortex (Suitable For Dirty Waste Water)
- Power (P2): 1.1 kW - 1.50 HP
- Max Flow Rate: 500 l/min
- Maximum head: 13.5 m
Connections, Overall Dimensions & Weight
- Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
- Overall dimensions (mm): 902 x 550 x 884
- Weight: 61.0 kg
Advice Of Choice
Recommended if you want a SAR250 Vortex for dirty wastewater with flow rates up to 500 l/min and head up to 13.5 m, while maintaining standard 1½" connections at the discharge.
Executions On Request
- Version With Float (To be chosen according to requirements)
- Three-phase submersible electric pump
- Alarm Kit (Code KSKIT-ALARM): Electric panel, self-powered siren, float switch
- 300 mm Extension Kit (Code KSKIT-308MA)
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.1
- CAPACITY
- 250
