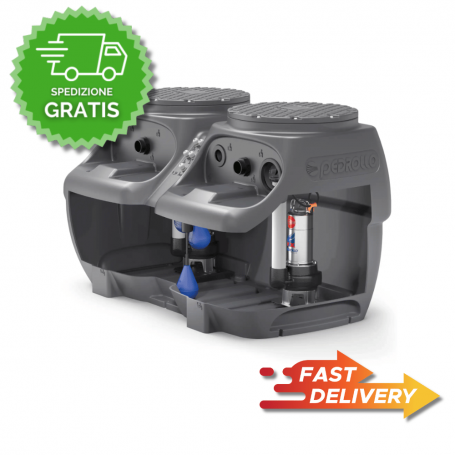

The Pedrollo SAR550 Lifting Station with double Dm 30 electric pump is suitable for collecting and lifting sewage in civil and industrial areas, with floor or underground installation when the sewer cannot be reached by gravity.
550-liter polyethylene tank with two treadable lids up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Drainage version for clear wastewater.
- Usage: Drainage - Clear Wastewater
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 275 l/min - Max head (1 Pump): 26 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Power Cable: 10 m
- Weight: 123.2 kg
See the Lifting Stations For Blackwater on Comid.com.
Pedrollo sar550 sewage lifting station with dm 30 1.50 hp - drainage
The Pedrollo SAR550 Lifting Station with double Dm 30 electric pump is suitable for collecting and lifting sewage in civil and industrial areas, with floor or underground installation when the sewer cannot be reached by gravity.
550-liter polyethylene tank with two treadable lids up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Drainage version for clear wastewater.
- Usage: Drainage - Clear Wastewater
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 275 l/min - Max head (1 Pump): 26 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Power Cable: 10 m
- Weight: 123.2 kg
See the Lifting Stations For Blackwater on Comid.com.
Overview
SAR550s are storage and lifting stations for clear, rain or sewage water from civil and industrial wastewater where gravity discharge is not available. Installation in the floor or underground, indoors or outdoors.
Typical Applications.
- Blackwater Drainage In Residential, Office Or Public Buildings
- Disposal of stormwater in yards or parking lots
- Installations Where Double Pump Storage And Lifting Is Needed
Supplied Components
- Reservoir: 550 Liters - Two Lids Not Walkable, Walkable Up To 100 kg
- Two Electric Pumps: Single-phase, Pre-installed And Connected To The Switchboard Included
- Electrical Panelboard: E2
- Three Floats: Alternating - Maximum Level (Second Pump) - Minimum Level (Stop)
- Cable: 10 m
Model Performance
- Configuration: Drainage (Suitable for clear wastewater)
- Pump: Dm 30
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 275 l/min
- Max Head (1 Pump): 26 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1½" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 123.2 kg
Selection Tip
Recommended if the system requires head up to 26 m in drainage configuration. Performance indicated for 1 pump.
Executions And Optional On Request
- Two single-phase electric pumps to be chosen according to requirements.
- Three-phase version
- Alarm Kit (KSKIT-ALARM): Panel, self-powered siren, float switch
- Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.1
- CAPACITY
- 550
