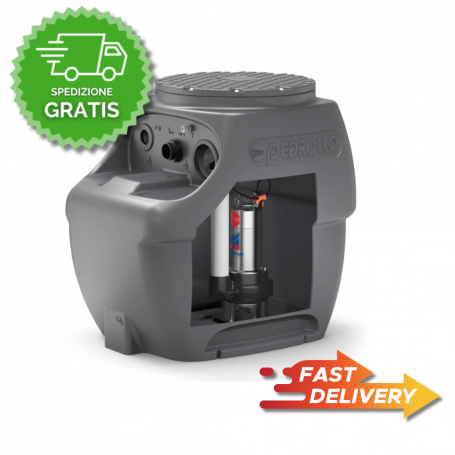

Pedrollo sar250 wastewater lifting station with top 3 0.75 hp - drainage

Overview

Pedrollo SAR250 Lift ing Stations are accumulation and lifting stations indicated for the collection and relaunching of clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer network is distant or not reachable by gravity.

The SAR 250 - TOP 3 version is a compact solution that can be installed on the floor or underground, either inside or outside buildings consisting of several residential units.

Typical Applications.

• Lifting domestic and civil wastewater in the absence of gravity drainage.
• Indoor or outdoor, floor or underground installation
• Drains From Washing Machines, Dishwashers, Washbasins And Toilets

Main Components

• Tank: Polyethylene - 250 liters - Non-Trackable Lid, Walkable Up To 100 kg
• Electric Pump: Submersible Single Phase
• Power Cable: 10 m (Standard Equipment)

Model Performance

• Pump: TOP 3 - Usage: Drainage (Clear Waste Water)
• Power (P2): 0.55 kW - 0.75 HP
• Max Flow Rate: 260 l/min
• Max. head: 10.0 m

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1¼" (Male Threaded) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 49.7 kg

Selection Tip

TOP 3 is suitable if you are looking for a SAR250 drainage for clear wastewater with performance up to 260 l/min and head up to 10.0 m.

Notes And Options

• Version With Float (On Request)
• Three-phase Submersible Electric Pump (On Request)
• Alarm Kit (Code KSKIT-ALARM) (On Request)
• 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
• Ball Check Valve And Delivery Ball Valve (On Request)
