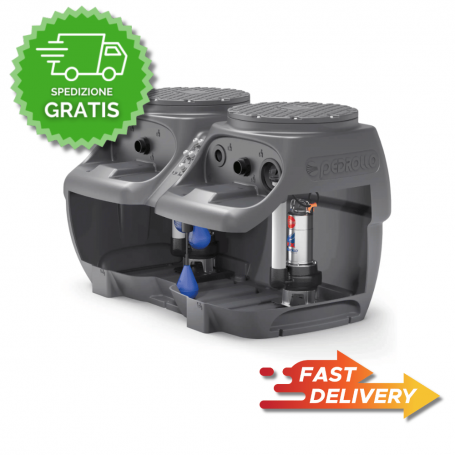

Pedrollo SAR550 Lifting Station with double electric pump BCm 15/50 is a Vortex version suitable for lifting sewage with very high flow rate and floor or underground installation.
550-liter tank, two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Suitable for dirty wastewater.
- Usage: Vortex - Dirty Wastewater.
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 750 l/min - Max head (1 Pump): 14 m
- Inlets: I DN 110 - U 2" - S DN 75
- Weight: 126.0 kg
Learn more about In Lifting Stations For Blackwater at Comid.com.
Waste water lifting station pedrollo sar550 with bcm 15/50 1.50 hp - vortex
Pedrollo SAR550 Lifting Station with double electric pump BCm 15/50 is a Vortex version suitable for lifting sewage with very high flow rate and floor or underground installation.
550-liter tank, two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Suitable for dirty wastewater.
- Usage: Vortex - Dirty Wastewater.
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 750 l/min - Max head (1 Pump): 14 m
- Inlets: I DN 110 - U 2" - S DN 75
- Weight: 126.0 kg
Learn more about In Lifting Stations For Blackwater at Comid.com.
Overview
SAR550s are storage and lifting stations for civil and industrial wastewater, which can be installed on the floor or underground, indoors or outdoors. Vortex versions are suitable for dirty wastewater.
Typical Applications.
- Lifting Dirty Wastewater Where Very High Flow Rates Are Needed.
- Installations Without Gravity Drainage
- Installation In Buildings And Outdoor Areas (Squares/Parks)
Supplied Components
- Reservoir: 550 Liters - Two Lids Up To 100 kg (Not Walkable)
- Two Pumps: Single-phase Pre-installed And Connected To The Switchboard
- Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
- Cable: 10 m
Model Performance
- Configuration: Vortex (Dirty Wastewater)
- Pump: BCm 15/50
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max Flow Rate (1 Pump): 750 l/min
- Max Head (1 Pump): 14 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 2" (Male) - S DN 75
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 126.0 kg
Selection Tip
Suitable when flow rate up to 750 l/min and head up to 14 m is needed, with 2" delivery. Performance indicated for 1 pump.
Executions And Optional On Request
- Two single-phase electric pumps to be chosen according to requirements.
- Three-phase Version
- Alarm Kit (KSKIT-ALARM): Panel, Siren, Floater
- Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.1
- CAPACITY
- 550
