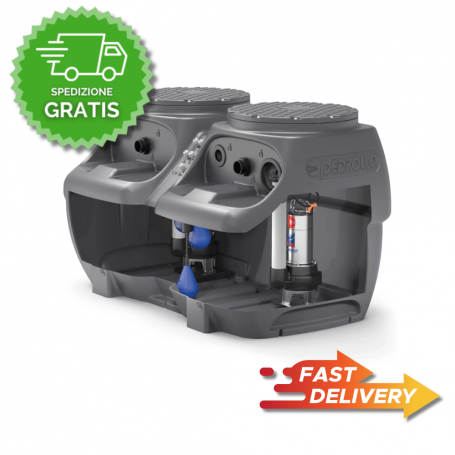

Pedrollo sar550 waste water lifting station with bcm 10/50 1.00 hp - vortex

Overview

SAR550s are storage and lifting stations for civil and industrial wastewater, which can be installed on the floor or underground, indoors or outdoors. Vortex versions are suitable for dirty wastewater.

Typical Applications.

• Lifting Dirty Wastewater Where Very High Flow Rates Are Needed
• Installations Without Gravity Drainage
• Installations In Buildings And Outdoor Areas

Supplied Components

• Reservoir: 550 Liters - Two Lids Up To 100 kg (Not Walkable)
• Two Pumps: Single Phase Pre-Installed And Connected To The Switchboard
• Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
• Cable: 10 m

Model Performance

• Configuration: Vortex (Dirty Wastewater)
• Pump: BCm 10/50
• Power (P2) (1 Pump): 0.75 kW - 1.00 HP
• Max Flow Rate (1 Pump): 600 l/min
• Max Head (1 Pump): 11 m

Connections, Dimensions And Weight

• Outlets: I DN 110 - U 2" (Male) - S DN 75
• Overall dimensions (mm): 1476 x 550 x 884
• Weight: 120.8 kg

Selection Tip

Vortex solution when needed flow rate up to 600 l/min and head up to 11 m, with 2" delivery. Performance indicated for 1 pump.

Executions And Optional On Request

• Two single-phase electric pumps to be chosen according to requirements.
• Three-phase Version
• Alarm Kit (KSKIT-ALARM): Panel, Siren, Floater
• Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
• Ball Check Valve And Ball Valve In The Exhaust Pipeline.
