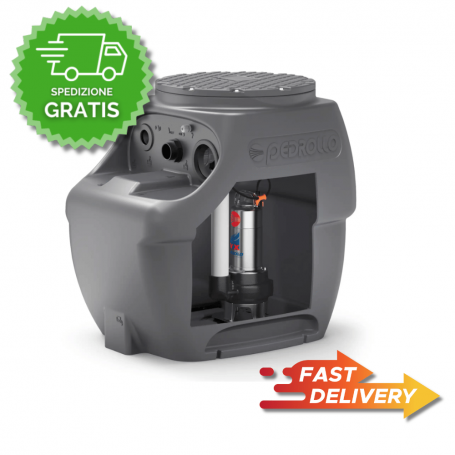

Pedrollo sar250 waste water lifting station with vxm 15/50 1.50 hp - vortex

Overview

Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rainwater and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets) when the sewer system is distant or cannot be reached by gravity. Installation in the floor or underground, indoors or outdoors.

Typical Applications.

• Lifting Wastewater In the Absence Of Drainage By Gravity
• Floor-mounted or underground installation, including outdoors
• Residential and civil applications with the need for high flow rates

Components

• Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To 100 kg
• Electric Pump: Submersible Single Phase
• Power Cable: 10 m (Standard Equipment)
• Outlet: Ball Check Valve And Ball Valve In Outlet Piping

Model Performance

• Pump: VXm 15/50 - Usage: Vortex (Suitable For Dirty Waste Water)
• Power (P2): 1.1 kW - 1.50 HP
• Max Flow Rate: 650 l/min
• Max head: 11 m

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 2" (Male threaded connection) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 61.5 kg

Selection Tip

The VXm 15/50 is the choice when the priority is a flow rate of up to 650 l/min in Vortex execution for dirty wastewater, with increased 2" discharge.

Executions On Request

• Version With Float (To be chosen according to requirements)
• Three-phase submersible electric pump
• Alarm Kit (Code KSKIT-ALARM): Electric panel, self-powered siren, float switch
• 300 mm Extension Kit (Code KSKIT-308MA)
