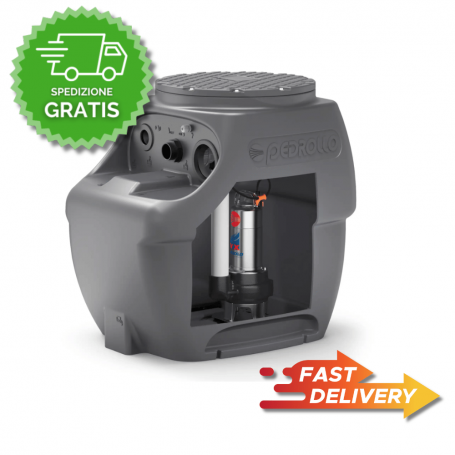

The Pedrollo SAR250 Lifting Station with Dm 20 electric pump is suitable for collecting and lifting residential and civil wastewater when a higher head is needed and gravity discharge is not possible.
250-liter tank, walkable cover up to 100 kg (not driveway), 10 m cable and valves in delivery (ball + ball check).
- Usage: Clear Waste Water (Drainage)
- Max flow rate: 250 l/min - Max head: 19.0 m
- Outlet (U): 1½" - Weight: 57.0 kg
See the Lifting Stations For Black Water at Comid.com.au.
Pedrollo sar250 waste water lifting station with dm 20 1.00 hp - drenage
The Pedrollo SAR250 Lifting Station with Dm 20 electric pump is suitable for collecting and lifting residential and civil wastewater when a higher head is needed and gravity discharge is not possible.
250-liter tank, walkable cover up to 100 kg (not driveway), 10 m cable and valves in delivery (ball + ball check).
- Usage: Clear Waste Water (Drainage)
- Max flow rate: 250 l/min - Max head: 19.0 m
- Outlet (U): 1½" - Weight: 57.0 kg
See the Lifting Stations For Black Water at Comid.com.au.
Overview
Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer system is distant or cannot be reached by gravity.
Typical Applications.
- Lifting Wastewater In Systems With Distant/Overhead Sewers
- Residential And Civil Drains (Including Toilets)
- Floor or underground installation, indoors or outdoors
Components
- Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To Max 100 kg
- Electric Pump: Submersible Single Phase - Cable: Standard 10 m
- Outlet: Ball Check Valve + Ball Valve in Outlet Piping
Model Performance
- Pump: Dm 20 - Power (P2): 0.75 kW - 1.00 HP
- Max flow rate: 250 l/min - Max head: 19.0 m
- Suitable For: Clear Wastewater (Drainage)
Connections, Overall Dimensions & Weight
- Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
- Overall dimensions (mm): 902 x 550 x 884
- Weight: 57.0 kg
Selection/Use Advice.
Choose Dm 20 when the system requires more head: up to 19.0 m with flow rate up to 250 l/min.
Notes
- SAR250 Station With Single-Phase Electric Pump With Float (On Request)
- Three-phase Submersible Electric Pump (On Request)
- Alarm Kit (Code KSKIT-ALARM) (On Request)
- 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.75
- CAPACITY
- 250
