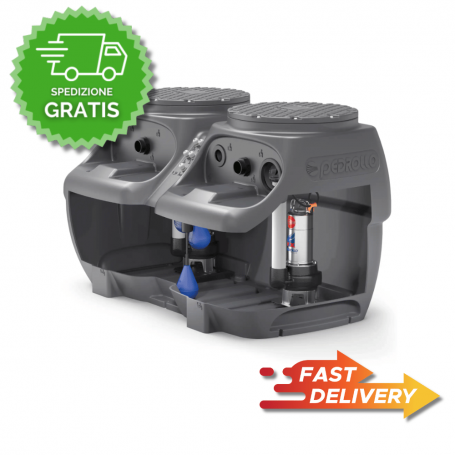

The Pedrollo SAR550 Lifting Station with dual TRm 0.9 electric pump with grinder (TRITUS) is suitable for lifting sewage in systems where gravity discharge is not available.
550-liter tank with two treadable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Raw Water
- Power (P2) (1 Pump): 0.9 kW - 1.25 HP
- Max flow rate (1 Pump): 170 l/min - Max head (1 Pump): 15 m
- Outlets: I DN 110 - U 1¼" - S DN 50
- Weight: 136.4 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Pedrollo sar550 waste water lifting station with trm 0.9 1.25 hp - triturator
The Pedrollo SAR550 Lifting Station with dual TRm 0.9 electric pump with grinder (TRITUS) is suitable for lifting sewage in systems where gravity discharge is not available.
550-liter tank with two treadable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Raw Water
- Power (P2) (1 Pump): 0.9 kW - 1.25 HP
- Max flow rate (1 Pump): 170 l/min - Max head (1 Pump): 15 m
- Outlets: I DN 110 - U 1¼" - S DN 50
- Weight: 136.4 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Overview
SAR550s are storage and lifting stations for civil and industrial wastewater, which can be installed on the floor or underground, indoors or outdoors. Versions with an electric pump with grinder (TRITUS) are suitable for sewage.
Typical Applications.
- Lifting Sewage With A Need For A Grinder
- Installations Where Sewerage Is Not Reachable By Gravity
- Civil and Industrial Installations
Supplied Components
- Tank: 550 Liters - Two Lids Walkable Up To 100 kg (Not Walkable)
- Two Pumps: Single-phase Pre-installed And Connected To The Switchboard
- Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
- Cable: 10 m
Model Performance
- Configuration: Macerator (TRITUS) - Suitable For Dirty Water
- Pump: TRm 0.9
- Power (P2) (1 Pump): 0.9 kW - 1.25 HP
- Max flow rate (1 Pump): 170 l/min
- Max Head (1 Pump): 15 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1¼" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 136.4 kg
Selection Tip
Suitable as a solution with a sewage grinder for sewage with flow rates up to 170 l/min. Performance indicated for 1 pump.
Notes And Executions On Request
- On Request "SAR" Stations With Coupling Feet And Guide Hoses For Descending Electric Pumps (For TR Versions)
- Three-phase version
- Alarm Kit (KSKIT-ALARM): Panel, Siren, Float
- 300 mm Extension Kit (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.9
- CAPACITY
- 550
