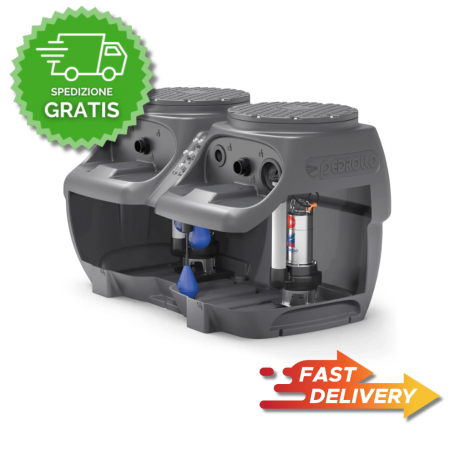

The Pedrollo SAR550 Lifting Station with TOP 5 double electric pump is suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater when gravity discharge is not possible.
550-liter polyethylene tank with two covers that cannot be driven on but can be walked on up to 100 kg, E2 electrical panel and three floats for alternation and level management.
- Usage: Drainage - Clear Waste Water
- Power (P2) (1 Pump): 0.92 kW - 1.25 HP
- Max flow rate (1 Pump): 360 l/min - Max head (1 Pump): 15 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Power Cable: 10 m (Standard Equipment)
- Weight: 110.9 kg
Discover the Lifting Stations For Blackwater Category at Comid.com.au.
Pedrollo sar550 wastewater lifting station with top 5 1.25 hp - drainage
The Pedrollo SAR550 Lifting Station with TOP 5 double electric pump is suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater when gravity discharge is not possible.
550-liter polyethylene tank with two covers that cannot be driven on but can be walked on up to 100 kg, E2 electrical panel and three floats for alternation and level management.
- Usage: Drainage - Clear Waste Water
- Power (P2) (1 Pump): 0.92 kW - 1.25 HP
- Max flow rate (1 Pump): 360 l/min - Max head (1 Pump): 15 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Power Cable: 10 m (Standard Equipment)
- Weight: 110.9 kg
Discover the Lifting Stations For Blackwater Category at Comid.com.au.
Overview
Pedrollo SAR550 Accumulation And Lifting Stations are suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater where the sewer system is too far away or cannot be reached by gravity. Installation in the floor or underground, indoors or outdoors.
Typical Applications.
- Drainage of sewage in residential buildings, offices or public buildings
- Disposal of stormwater in yards or parking lots
- Civil and Industrial Installations Where Gravity Drainage Is Not Available
Supplied Components
- Tank: Polyethylene - 550 Liters - Two Lids Walkable Up To 100 kg (Not Walkable)
- Pumps: Two pre-installed single-phasepumps (without float) connected to the switchboard provided
- Switchboard: E2
- Floats: Alternating - Maximum Level (Second Pump) - Minimum Level (Stop)
- Cable: 10 m
Model Performance
- Configuration: SAR550 With Drainage Pumps (Suitable For Clear Waste Water)
- Pump: TOP 5
- Power (P2) (1 Pump): 0.92 kW - 1.25 HP
- Max flow rate (1 Pump): 360 l/min
- Max Head (1 Pump): 15 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1½" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 110.9 kg
Selection Tip
Suitable if you want higher flow rate and head than the TOP 4 versions. Flow rate and head values are given for 1 pump, as per data sheet.
Executions And Optional On Request
- Two single-phase electric pumps to be chosen according to requirements
- Three-phase Version
- Alarm Kit (KSKIT-ALARM): panel, siren, float switch
- Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.92
- CAPACITY
- 550
