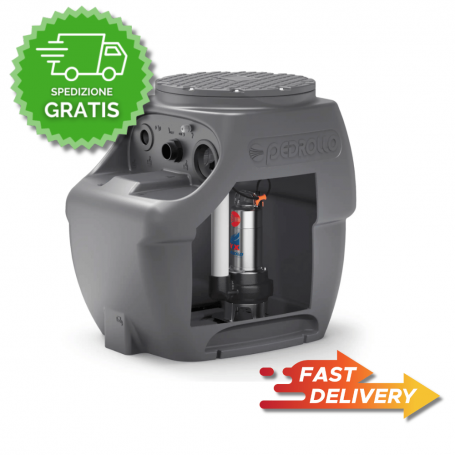

Pedrollo sar250 waste water lifting station with dm 10 1.00 hp - drenage

Overview

The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains such as washing machines, dishwashers, sinks and toilets, where the sewer system is too far away or cannot be reached by gravity.

The SAR250 range is compact and can be installed on the floor or underground, indoors or outdoors.

Typical Applications.

• Wastewater lifting from residential and civil drains
• Installations Where Gravity Discharge Is Not Possible
• Laying In Buildings With Multiple Dwelling Units (Indoor/Outdoor)

Components

• Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To Max 100 kg
• Electric Pump: Submersible Single-phase - Cable: Standard 10 m
• Outlet: Ball Check Valve + Ball Valve in Outlet Piping

Model Performance

• Pump: Dm 10 - Power (P2): 0.75 kW - 1.00 HP
• Max flow rate: 300 l/min - Max head: 15.5 m
• Suitable For: Clear Wastewater (Drainage)

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 57.0 kg

Selection/Use Recommendation

Recommended if you want a SAR250 for drainage with head up to 15.5 m and flow rate up to 300 l/min, with 1½" delivery.

Notes

• SAR250 Station With Single-Phase Electric Pump With Float (On Request)
• Three-phase Submersible Electric Pump (On Request)
• Alarm Kit (Code KSKIT-ALARM) (On Request)
• 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
