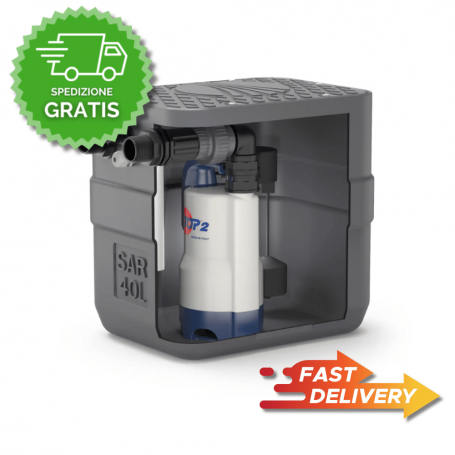

Pedrollo sar40 wastewater lifting station with tritus tx 0.75 hp - shredder

Overview

The Pedrollo SAR40 Lifting Station SAR 40 - TRITUS-TX is a compact accumulation and lifting station, suitable for collecting and releasing sewage from domestic drains, when the sewer system is too far away or cannot be reached by gravity.

Typical Applications.

• Collection And Relief Of Clear, Rain And Waste Water From Domestic Drains (Washing Machines, Dishwashers, Sinks)
• Installations Where Drainage By Gravity Is Not Possible
• Installation In Basements, Single Dwelling Unit Garages Or Even Underground

Model Technical Data

• Type: SAR 40 - TRITUS-TX (with electric pump with macerator) - Suitable for sewage water
• Power (P2): 0.55 kW - 0.75 HP
• Max flow rate: 90 l/min
• Max head: 11.5 m
• Tank: Polyethylene - Capacity 40 liters - Lid Not Walkable And Not Carriageable
• Inlets: I 1½" - U 1¼" - S ½" (Male threaded connection)
• Height h: 335 mm - Weight: 15.9 kg
• Power Cable: 5 m (Standard)
• Max. overall dimensions Tank: 448 x 410 x 310 mm

Advantages

• Compact And Easy To Install Solution Even In Reduced Technical Spaces
• 40L polyethylene tank for storage and lifting management
• Single-phase submersible electric pump with 5 m standard cable

Selection Tips

Choose TRITUS-TX when the application requires a station suitable for sewage and needs a head of up to 11.5 m, taking as reference the maximum flow rate 90 l/min and installation constraints (surface or underground).

Notes

• Executions On Request: Version With Float; 10 m Power Cable
• Non-Return Valve (On Request): Full Passage With External Mounting For Versions With Shredder
• Start of Production: 06/2024
