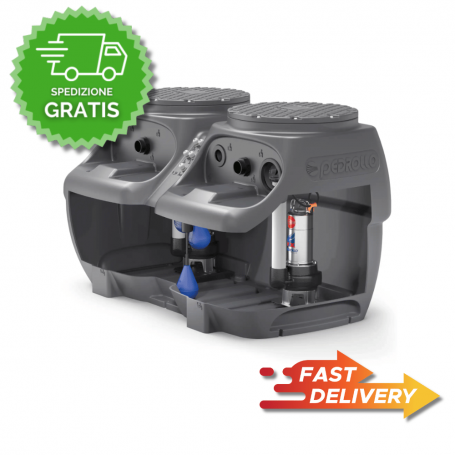

PEDROLLO SAR550 WASTEWATER LIFTING STATION WITH TOP 4 1.00 HP - DRAINAGE

The Pedrollo SAR550 Lifting Station with TOP 4 double electric pump is suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater when the sewer system is distant or not reachable by gravity.

550-liter polyethylene tank with two covers that cannot be driven on but can be walked on up to 100 kg, with E2 electrical panel and three floats for alternation, maximum level (second pump start) and minimum level (stop).

Usage: Drainage - Clear Waste Water
Power (P2) (1 Pump): 0.75 kW - 1.00 HP
Max flow rate (1 Pump): 320 l/min - Max head (1 Pump): 12.5 m
Outlets: I DN 110 - U 1½" - S DN 50
Power Cable: 10 m (Standard Equipment)
Weight: 109.0 kg

Discover the Lifting Stations For Blackwater Category at Comid.com.au.

Available Now

Pedrollo sar550 wastewater lifting station with top 4 1.00 hp - drainage

Usage: Drainage - Clear Waste Water
Power (P2) (1 Pump): 0.75 kW - 1.00 HP
Max flow rate (1 Pump): 320 l/min - Max head (1 Pump): 12.5 m
Outlets: I DN 110 - U 1½" - S DN 50
Power Cable: 10 m (Standard Equipment)
Weight: 109.0 kg

Discover the Lifting Stations For Blackwater Category at Comid.com.au.

€2,422.92 (tax incl.) Iva inclusa

€4,038.20 -40%

o paga a rate senza interessi Cofidis PagoDIL

Migliori E-commerce d'Italia per forniture industriali - la Repubblica

migliori ecommerce italia forniture industriali

24 mesi di garanzia

Hai bisogno di ulteriori informazioni? Contattaci

Paga in comode rate senza costi né interessi

Numero di rate

Importo

€ /mese

Maggiori informazioni

Overview

Pedrollo SAR550 Accumulation And Lifting Stations are suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater, where the sewer system is too far away or cannot be reached by gravity. SAR550 stations are compact and easy to install on the floor or underground, either inside or outside residential buildings, offices or public establishments.

Typical Applications.

Blackwater Drainage In Residential, Office Or Public Buildings
Disposal of stormwater in yards or parking lots
Civil and Industrial Installations Where Gravity Drainage Is Not Available

Supplied Components

Tank: Polyethylene - Capacity 550 Liters - Two Non-Trackable Lids, Walkable Up To 100 kg
Pumps: Two single-phase electric pumps (without float switch) pre-installed and already connected to the control panel provided
Electrical Box: Model E2
Floats: Three Floats with Alternating Functions, Maximum Level (Second Pump Start) and Minimum Level (Pump Shutdown)
Power Cable: Standard Equipment 10 m

Model Performance

Configuration: SAR550 With Drainage Pumps (Suitable For Clear Waste Water)
Pump: TOP 4
Power (P2) (1 Pump): 0.75 kW - 1.00 HP
Max flow rate (1 Pump): 320 l/min
Max Head (1 Pump): 12.5 m

Connections, Dimensions And Weight

Outlets: I DN 110 - U 1½" (Male Threaded Port) - S DN 50
Overall Dimensions (mm): 1476 x 550 x 884 (As Per Dimensional Drawing)
Weight: 109.0 kg

Selection Tip

Balanced choice for drainage and clear effluent, with good combination of flow rate and head. Flow rate and head values are given for 1 pump, as per data sheet.

Executions And Optional On Request

SAR550 Storage Station With Two Single-Phase Electric Pumps To Be Selected According to Requirement
Three-Phase Version
Alarm Kit (Code KSKIT-ALLARME): Electrical Panel, Self-powered Siren, Floater
300 mm Extension Kit (Code KSKIT-308MA): Two Kits are needed for SAR550.
"SAR" Stations With Ball Check Valve And Ball Valve In The Drain Pipe

BRAND: PEDROLLO
POWER (Kw): 0.75
CAPACITY: 550
