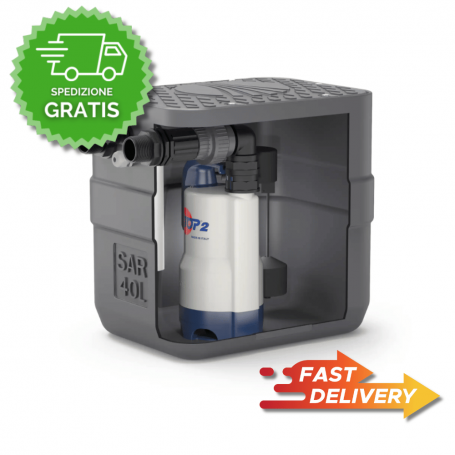

Pedrollo sar40 wastewater lifting station with top2-vortex/gm 0.50hp - vortex

Overview

The Pedrollo SAR40 Lifting Station SAR 40 - TOP 2 VORTEX-GM is a compact accumulation and lifting station, suitable for collecting and releasing clear, rain and wastewater from domestic drains (washing machines, dishwashers, sinks) when gravity discharge is not possible.

Typical Applications.

• Lifting Wastewater In Technical Areas (Basements, Garages) Or With Underground Installation
• Installations With Distant Sewerage System Or Not Reachable By Gravity
• Applications In Which The Model Is Suitable For Dirty Wastewater

Model Technical Data

• Type: SAR 40 - TOP 2 VORTEX-GM (Vortex Electric Pumps) - Suitable For Dirty Waste Water
• Power (P2): 0.37 kW - 0.50 HP
• Max flow rate: 155 l/min
• Max head: 7.0 m
• Tank: Polyethylene - Capacity 40 liters - Lid Not Walkable And Not Carriageable
• Inlets: I 1½" - U 1¼" - S ½" (Male threaded connection)
• Height h: 335 mm - Weight: 14.4 kg
• Power Cable: 5 m (Standard)
• Max. overall dimensions Tank: 448 x 410 x 310 mm

Advantages

• Compact Station Designed For Above Ground Or Underground Installation
• 40-liter polyethylene tank with non-walkable and non-tripable lid
• Single-phase submersible electric pump with 5 m standard cable

Selection Tips

Choose TOP 2 VORTEX-GM if the need falls under dirty wastewater and you need performance up to 155 l/min with head up to 7.0 m, keeping the focus on a compact SAR40 solution.

Notes

• Executions On Request: Version With Float; 10 m Power Cable
• Non-Return Valve (On Request): Full Passage With External Mounting For Vortex Pumps
• Production Start-up: 06/2024
