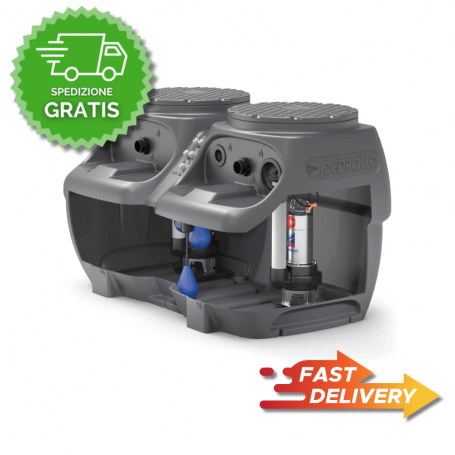

Pedrollo sar550 sewage lifting station with dm 10 1.00 hp - drainage

Overview

Pedrollo SAR550 Accumulation And Lifting Stations are suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater where the sewer system is too far away or cannot be reached by gravity. Installation in the floor or underground, indoors or outdoors.

Typical Applications.

• Black water drainage in residential buildings, offices or public buildings.
• Disposal of stormwater in yards or parking lots
• Civil and Industrial Installations Without Gravity Drainage

Supplied Components

• Tank: 550 Liters Polyethylene - Two Lids Walkable Up To 100 kg (Not Walkable)
• Pumps: Two pre-installed single-phasepumps (without float switch) connected to the switchboard provided
• Switchboard: Model E2
• Floats: Alternating - Maximum Level (Second Pump) - Minimum Level (Stop)
• Cable: 10 m

Model Performance

• Configuration: SAR550 With Drainage Pumps (Suitable For Clear Waste Water)
• Pump: Dm 10
• Power (P2) (1 Pump): 0.75 kW - 1.00 HP
• Max flow rate (1 Pump): 300 l/min
• Max Head (1 Pump): 15.5 m

Connections, Dimensions And Weight

• Outlets: I DN 110 - U 1½" (Male) - S DN 50
• Overall dimensions (mm): 1476 x 550 x 884
• Weight: 116.4 kg

Selection Tip

Suitable when a higher head is needed while maintaining a sustained flow rate. Flow rate and head values are given for 1 pump, as per data sheet.

Executions And Optional On Request

• Two single-phase electric pumps to be chosen according to requirements
• Three-phase Version
• Alarm Kit (KSKIT-ALARM): panel, siren, float switch
• Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
• Ball Check Valve And Ball Valve In The Exhaust Pipeline.
