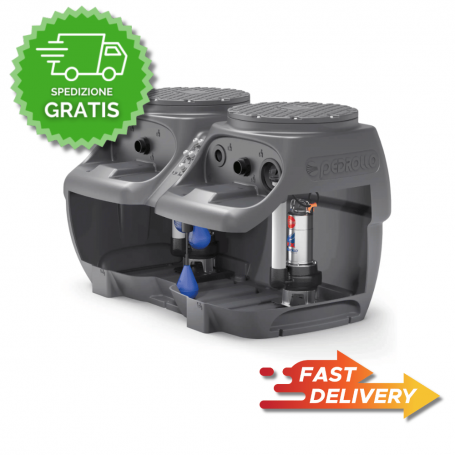

The Pedrollo SAR550 Lifting Station with dual TRm 1.3 electric pump with grinder (TRITUS) is suitable for lifting sewage when high flow rate and head need to be combined in floor or underground installations.
550-liter tank with two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2) (1 Pump): 1.3 kW - 1.75 HP
- Max flow rate (1 Pump): 220 l/min - Max head (1 Pump): 22.5 m
- Outlets: I DN 110 - U 1¼" - S DN 50
- Weight: 139.4 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Pedrollo sar550 waste water lifting station with trm 1.3 1.75 hp - triturator
The Pedrollo SAR550 Lifting Station with dual TRm 1.3 electric pump with grinder (TRITUS) is suitable for lifting sewage when high flow rate and head need to be combined in floor or underground installations.
550-liter tank with two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2) (1 Pump): 1.3 kW - 1.75 HP
- Max flow rate (1 Pump): 220 l/min - Max head (1 Pump): 22.5 m
- Outlets: I DN 110 - U 1¼" - S DN 50
- Weight: 139.4 kg
Discover Lifting Stations For Blackwater at Comid.com.au.
Overview
SAR550s are storage and lifting stations that can be installed on the floor or underground, indoors or outdoors. Versions with a macerator (TRITUS) are suitable for sewage.
Typical Applications.
- Lifting Sewage With Shredder
- Installations Without Gravity Drainage
- Civil And Industrial Installations
Supplied Components
- Reservoir: 550 Liters - Two Lids Up To 100 kg (Not Walkable)
- Two Pumps: Single-phase Pre-installed And Connected To The Switchboard
- Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
- Cable: 10 m
Model Performance
- Configuration: Shredder (TRITUS) - Raw Water
- Pump: TRm 1.3
- Power (P2) (1 Pump): 1.3 kW - 1.75 HP
- Max flow rate (1 Pump): 220 l/min
- Max Head (1 Pump): 22.5 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1¼" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 139.4 kg
Selection Tip
Suitable if you want a TRITUS version with flow rate up to 220 l/min and head up to 22.5 m. Performance indicated for 1 pump.
Notes And Executions On Request
- On Request "SAR" Stations With Coupling Feet And Guide Hoses (For TR Versions)
- Three-Phase Version
- Alarm Kit (KSKIT-ALARM): Panel, siren, float switch
- 300 mm Extension Kit (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.3
- CAPACITY
- 550
