Pedrollo SAR100 Lifting Station with Dm 20 electric pump is the choice for domestic systems where higher head is required, with floor or underground installation.
- Usage: Drainage (Suitable For Clear Waste Water)
- Power (P2): 0.75 kW - 1.0 HP
- Max flow rate: 250 l/min - Max head: 19.0 m
- Tank: 100 liters - Cable 10 m (Standard)
Learn more in Lifting Stations For Black Water.
Pedrollo sar100 sewage lifting station with dm 20 1.00 hp - drainage
Pedrollo SAR100 Lifting Station with Dm 20 electric pump is the choice for domestic systems where higher head is required, with floor or underground installation.
- Usage: Drainage (Suitable For Clear Waste Water)
- Power (P2): 0.75 kW - 1.0 HP
- Max flow rate: 250 l/min - Max head: 19.0 m
- Tank: 100 liters - Cable 10 m (Standard)
Learn more in Lifting Stations For Black Water.
Overview

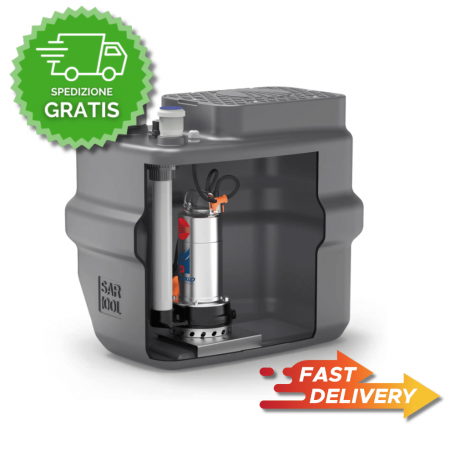

The Pedrollo SAR100 Lifting Station with Dm 20 electric pump is suitable for collecting and lifting clear, rain and wastewater from domestic drains when the sewer system is distant or not accessible by gravity. Installation in the floor or underground, indoors or outdoors.
Typical Applications.
- Domestic drains (washing machines, dishwashers, sinks)
- Lifting In The Absence Of Slope To The Sewer.
- Single- or Two-Family Dwellings
Performance And Technical Data
- Type: Drainage pumps (Suitable for clear wastewater)
- Power (P2): 0.75 kW - 1.0 HP
- Max flow rate: 250 l/min
- Max head: 19.0 m
- Tank: Polyethylene - 100 liters - Lid Not Walkable And Not Carriageable
- Power cable: 10 m (Standard) - Single-phase submersible electric pump
Connections, Dimensions And Weight
- I: DN 110 - U: 1½" (Male Threaded Connection) - S: DN 50
- Dimensions: i1 145 mm - i2 100 mm - Dimensions (mm): 690 - 500 - 636
- Weight: 36.3 kg
Advantages And Model Choice
The Dm 20 version is suitable when the system requires a head of up to 19.0 m, while maintaining the compactness of the SAR100 and the 100-liter tank.
Notes
- Execution On Request: Version With Float (To be Chosen According to Requirement)
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.75
- CAPACITY
- 100
