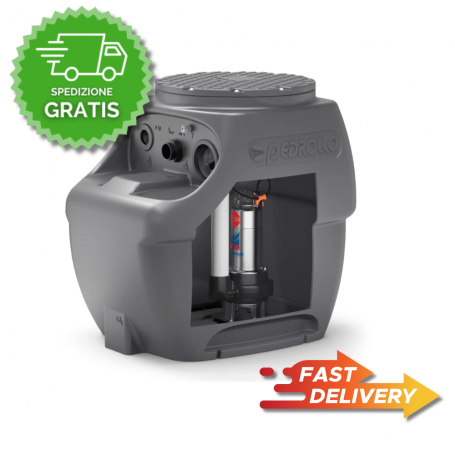

Pedrollo sar250 waste water lifting station with tigm 0.75 kw 1.00 hp - triturator

Overview

The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets) when the sewer system is distant or cannot be reached by gravity, with floor or underground installation. The version with a grinder (TRITUS) is suitable for sewage.

Typical Applications.

• Wastewater lifting where a macerator is required
• Installations Where Gravity Drainage Is Not Possible
• Residential And Domestic Uses (Including Toilets)

Components

• Tank: Polyethylene - 250 Liters - Non-Passable Lid, Walkable Up To 100 kg
• Electric pump: Single-phase submersible pump with grinder (TRITUS)
• Power Cable: 10 m (Standard Equipment)
• Outlet: Ball Check Valve And Ball Valve In Outlet Piping

Model Performance

• Pump: TIGm 0.75 - Use: Triturator (TRITUS) - Suitable For Dirty Water
• Power (P2): 0.75 kW - 1.00 HP
• Max flow rate: 140 l/min
• Maximum head: 17.5 m

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 59.0 kg

Selection Tip

TIGm 0.75 is suitable when a SAR250 with sewage grinder is needed, with head up to 17.5 m and maximum flow 140 l/min.

Executions On Request

• Version With Float (To be chosen according to requirements)
• Three-phase submersible electric pump
• Alarm Kit (Code KSKIT-ALARM): Electric panel, self-powered siren, float switch
• 300 mm Extension Kit (Code KSKIT-308MA)
