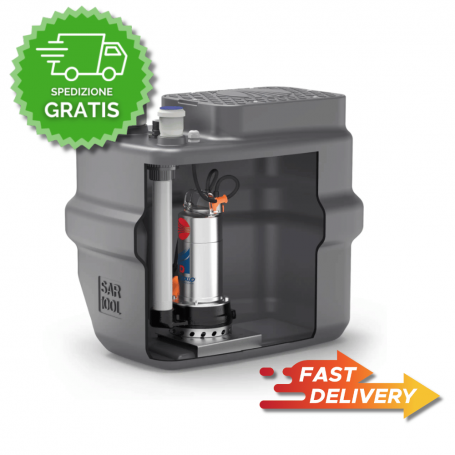

The Pedrollo SAR100 Lifting Station with RXm 3/20 electric pump is a compact solution for lifting domestic sewage, which can be installed in the floor or underground.
- Usage: Vortex (Suitable For Dirty Wastewater)
- Power (P2): 0.55 kW - 0.75 HP
- Max flow rate: 240 l/min - Max head: 9.5 m
- Tank: 100 liters - Cable 10 m (Standard)
Discover the category Lifting Stations For Black Water.
Pedrollo sar100 waste water lifting station with rxm 3/20 0.75 hp - vortex
The Pedrollo SAR100 Lifting Station with RXm 3/20 electric pump is a compact solution for lifting domestic sewage, which can be installed in the floor or underground.
- Usage: Vortex (Suitable For Dirty Wastewater)
- Power (P2): 0.55 kW - 0.75 HP
- Max flow rate: 240 l/min - Max head: 9.5 m
- Tank: 100 liters - Cable 10 m (Standard)
Discover the category Lifting Stations For Black Water.
Overview
The Pedrollo SAR100 Lifting Station with RXm 3/20 electric pump is suitable for collecting and lifting clear, rain and wastewater from domestic drains when the sewer system cannot be reached by gravity. Floor or underground installation, including outdoor.
Typical Applications.
- Domestic Wastewater With Lifting Needs
- Indoor Or Outdoor Installations (Mono/Bi-Family)
- Floor or Underground Installation
Performance And Technical Data
- Type: Vortex Electric Pumps (Suitable For Dirty Wastewater)
- Power (P2): 0.55 kW - 0.75 HP
- Maximum flow rate: 240 l/min
- Max head: 9.5 m
- Tank: Polyethylene - 100 liters - Lid Not Walkable And Not Carriageable
- Power cable: 10 m (Standard) - Single-phase submersible electric pump
Connections, Dimensions And Weight
- I: DN 110 - U: 1¼" (Male Threaded Connection) - S: DN 50
- Dimensions: i1 145 mm - i2 100 mm - Dimensions (mm): 690 - 500 - 636
- Weight: 30.0 kg
Advantages And Model Choice
The RXm 3/20 version is suitable when, in vortex execution, a flow rate up to 240 l/min with head up to 9.5 m is needed, while maintaining compactness and a 100-liter tank.
Notes
- Execution On Request: Version With Float (To be Chosen According to Requirement)
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.55
- CAPACITY
- 100
