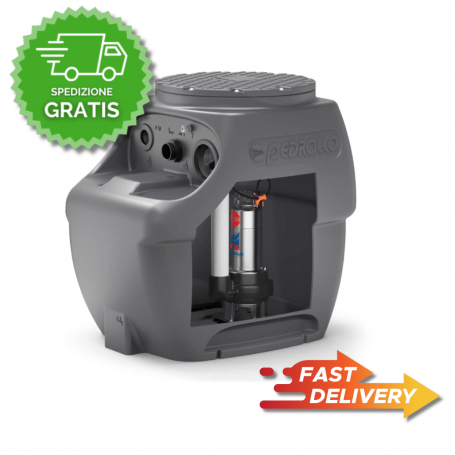

The Pedrollo SAR250 Lifting Station with TIGm 1.1 (TRITUS) electric pump is suitable for lifting sewage when a grinder is needed and more head is required, with floor or underground installation.
250-liter tank, walkable cover up to 100 kg (not driveable), standard 10 m cable. Electric panel is provided for this version.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2): 1.1 kW - 1.50 HP
- Max flow rate: 150 l/min - Max head: 22.5 m
- Connections: I DN 110 - U 1½" - S DN 50
- Overall dimensions (mm): 902 x 550 x 884 - Weight: 61.3 kg
See the Lifting Stations For Blackwater Category on Comid.com.
Pedrollo sar250 waste water lifting station with tigm 1.1kw 1.50 hp - triturator
The Pedrollo SAR250 Lifting Station with TIGm 1.1 (TRITUS) electric pump is suitable for lifting sewage when a grinder is needed and more head is required, with floor or underground installation.
250-liter tank, walkable cover up to 100 kg (not driveable), standard 10 m cable. Electric panel is provided for this version.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2): 1.1 kW - 1.50 HP
- Max flow rate: 150 l/min - Max head: 22.5 m
- Connections: I DN 110 - U 1½" - S DN 50
- Overall dimensions (mm): 902 x 550 x 884 - Weight: 61.3 kg
See the Lifting Stations For Blackwater Category on Comid.com.
Overview
The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets) when the sewer system is distant or cannot be reached by gravity, with floor or underground installation. The version with a grinder (TRITUS) is suitable for sewage.
Typical Applications.
- Wastewater lifting where the macerator is needed
- Residential and Municipal Installations Without Gravity Drainage
- Uses With Drains Requiring Sewage Management
Components
- Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To 100 kg
- Electric pump: Single-phase submersiblepump with grinder (TRITUS)
- Switchboard: For SAR250-TIGm 1.1
- Power Cable: 10m (Standard Equipment)
- Delivery: Ball Check Valve And Ball Valve In Delivery Pipe
Model Performance
- Pump: TIGm 1.1 - Use: Triturator (TRITUS) - Suitable For Dirty Water
- Power (P2): 1.1 kW - 1.50 HP
- Max flow rate: 150 l/min
- Maximum head: 22.5 m
Connections, Overall Dimensions & Weight
- Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
- Overall dimensions (mm): 902 x 550 x 884
- Weight: 61.3 kg
Selection Tip
The TIGm 1.1 is suitable when a SAR250 with shredder and head up to 22.5 m is needed, while maintaining a maximum flow rate of 150 l/min and being equipped with switchboard.
Executions On Request
- Version With Float (To be chosen according to requirements)
- Three-phase submersible electric pump
- Alarm Kit (Code KSKIT-ALLARME): Electric panel, self-powered siren, float switch
- 300 mm Extension Kit (Code KSKIT-308MA)
