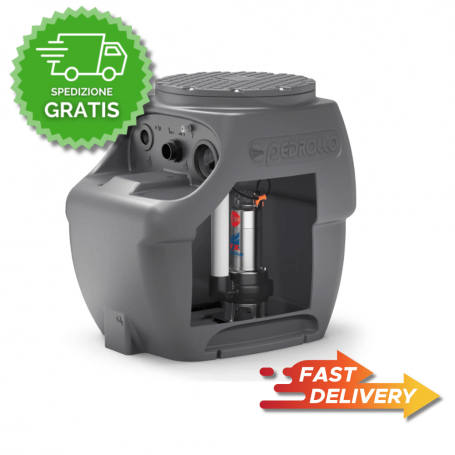

Pedrollo sar250 waste water lifting station with dm 30 1.50 hp - drenage

Overview

Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer system is distant or cannot be reached by gravity.

Typical Applications.

• Systems With a Need for High Headroom
• Residential And Civil Drains (Including Toilets)
• Underground or Floor Installation, Indoors or Outdoors

Components

• Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To Max 100 kg
• Electric Pump: Submersible Single Phase - Cable: Standard 10 m
• Outlet: Ball Check Valve + Ball Valve in Outlet Piping

Model Performance

• Pump: Dm 30 - Power (P2): 1.1 kW - 1.50 HP
• Max flow rate: 275 l/min - Max head: 26.0 m
• Suitable For: Clear Waste Water (Drainage)

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 60.4 kg

Selection/Use Advice.

The Dm 30 version is suitable when the priority is head: up to 26.0 m, keeping 250-liter tank and 1½" discharge.

Notes

• SAR250 Station With Single-Phase Electric Pump With Float (On Request)
• Three-phase Submersible Electric Pump (On Request)
• Alarm Kit (Code KSKIT-ALARM) (On Request)
• 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
