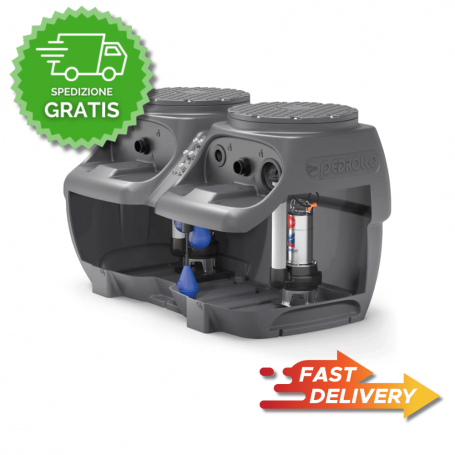

Pedrollo SAR550 Lifting Station with double TRm 1.5 electric pump with grinder (TRITUS) is suitable for lifting sewage when high head and flow rate is required, with floor or underground installation.
550-liter tank with two treadable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2) (1 Pump): 1.5 kW - 2.00 HP
- Max flow rate (1 Pump): 270 l/min - Max head (1 Pump): 25 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Weight: 178.4 kg
See the Lifting Stations For Blackwater on Comid.com.
Waste water lifting station pedrollo sar550 with trm 1.5 2.00 hp - triturator
Pedrollo SAR550 Lifting Station with double TRm 1.5 electric pump with grinder (TRITUS) is suitable for lifting sewage when high head and flow rate is required, with floor or underground installation.
550-liter tank with two treadable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels.
- Usage: Shredder (TRITUS) - Dirty Water.
- Power (P2) (1 Pump): 1.5 kW - 2.00 HP
- Max flow rate (1 Pump): 270 l/min - Max head (1 Pump): 25 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Weight: 178.4 kg
See the Lifting Stations For Blackwater on Comid.com.
Overview
SAR550s are storage and lifting stations that can be installed on the floor or underground, indoors or outdoors. Versions with a macerator (TRITUS) are suitable for sewage.
Typical Applications.
- Lifting Sewage Where a Shredder Is Required
- Installations Without Gravity Drainage
- Civil and Industrial Installations
Supplied Components
- Reservoir: 550 Liters - Two Lids Up To 100 kg (Not Walkable)
- Two Pumps: Single-phase Pre-installed And Connected To The Switchboard
- Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
- Cable: 10 m
Model Performance
- Configuration: Shredder (TRITUS) - Raw Water
- Pump: TRm 1.5
- Power (P2) (1 Pump): 1.5 kW - 2.00 HP
- Max Flow Rate (1 Pump): 270 l/min
- Max Head (1 Pump): 25 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1½" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 178.4 kg
Selection Tip
Suitable when a TRITUS version with performance up to 270 l/min and head up to 25 m is needed. Performance indicated for 1 pump.
Notes And Executions On Request
- On Request "SAR" Stations With Coupling Feet And Guide Hoses (For TR Versions)
- Three-Phase Version
- Alarm Kit (KSKIT-ALARM): Panel, siren, float switch
- 300 mm Extension Kit (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.5
- CAPACITY
- 550
