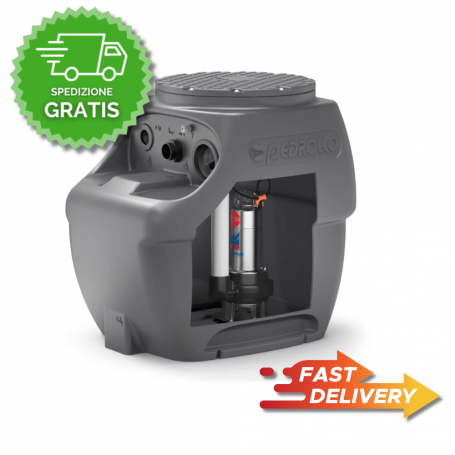

Pedrollo sar250 waste water lifting station with tigm 1.3 kw 1.75 hp - triturator

Overview

The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets) when the sewer system is distant or cannot be reached by gravity, with floor or underground installation. The version with a grinder (TRITUS) is suitable for sewage.

Typical Applications.

• Lifting Wastewater With the Need for a Shredder
• Installations Where Gravity Drainage Is Not Available
• Residential and civil applications (including toilets)

Components

• Tank: Polyethylene - 250 Liters - Non-Trackable Lid, Walkable Up To 100 kg
• Electric pump: Single-phase submersible pump with grinder (TRITUS)
• Switchboard: For SAR250-TIGm 1.3
• Power Cable: 10m (Standard Equipment)
• Delivery: Ball Check Valve And Ball Valve In Delivery Pipe

Model Performance

• Pump: TIGm 1.3 - Use: Triturator (TRITUS) - Suitable For Dirty Water
• Power (P2): 1.3 kW - 1.75 HP
• Max flow rate: 250 l/min
• Maximum head: 20.5 m

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1½" (Male threaded connection) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 61.3 kg

Selection Tip

The TIGm 1.3 is suitable when a SAR250 with a macerator combining flow rate up to 250 l/min and head up to 20.5 m is needed, with switchboard provided for this version.

Executions On Request

• Version With Float (To be chosen according to requirements)
• Three-phase submersible electric pump
• Alarm Kit (Code KSKIT-ALLARME): Electrical panel, self-powered siren, float switch
• 300 mm Extension Kit (Code KSKIT-308MA)
