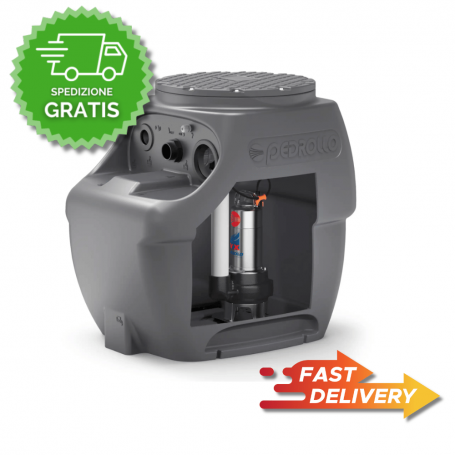

The Pedrollo SAR250 Lifting Station with RXm 3 is designed for residential and civil drains when the sewer cannot be reached by gravity, with floor or underground installation.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and standard 10 m cable.
- Usage: Drainage (Clear Waste Water).
- Power (P2): 0.55 kW - 0.75 HP
- Max flow rate: 220 l/min - Max head: 11.5 m
- Inlets: I DN 110 - U 1¼" - S DN 50
- Weight: 50.6 kg
See Lifting Stations For Blackwater at Comid.com.au.
Pedrollo sar250 waste water lifting station with rxm 3 0.75 hp - drenage
The Pedrollo SAR250 Lifting Station with RXm 3 is designed for residential and civil drains when the sewer cannot be reached by gravity, with floor or underground installation.
250-liter polyethylene tank, walkable cover up to 100 kg (not driveway) and standard 10 m cable.
- Usage: Drainage (Clear Waste Water).
- Power (P2): 0.55 kW - 0.75 HP
- Max flow rate: 220 l/min - Max head: 11.5 m
- Inlets: I DN 110 - U 1¼" - S DN 50
- Weight: 50.6 kg
See Lifting Stations For Blackwater at Comid.com.au.
Overview
The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer system is distant or cannot be reached by gravity.
The SAR 250 - RXm 3 version can be installed in the floor or underground, indoors or outdoors.
Typical Applications.
- Domestic and civil wastewater in the absence of gravity drainage.
- Indoor/Exdoor, Floor or Underground Installation
- Drains From Washing Machines, Dishwashers, Washbasins And Toilets
Main Components
- Tank: Polyethylene - 250 liters - Non-Trackable Lid, Walkable Up To 100 kg
- Electric Pump: Submersible Single Phase
- Cable: 10 m (Standard)
Model Performance
- Pump: RXm 3 - Usage: Drainage (Clear Waste Water)
- Power (P2): 0.55 kW - 0.75 HP
- Max Flow Rate: 220 l/min
- Max head: 11.5 m
Connections, Overall Dimensions & Weight
- Outlets: I DN 110 - U 1¼" (Male Threaded) - S DN 50
- Overall dimensions (mm): 902 x 550 x 884
- Weight: 50.6 kg
Selection Tip
Recommended if you are looking for a SAR250 for drainage with head up to 11.5 m and maximum flow rate 220 l/min.
Notes And Options
- Version With Float (On Request)
- Three-phase electric pump (On Request)
- KSKIT-alarm Kit (On Request)
- Extension Kit 300 mm KSKIT-308MA (On Request)
- Ball Check Valve And Delivery Ball Valve (On Request)
