The Pedrollo SAR550 Lifting Station with double VXm 15/50 electric pump is a Vortex solution for lifting sewage, suitable when high flow rate and floor or underground installation need to be combined.
550-liter tank with two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Version for dirty wastewater.
- Usage: Vortex - Dirty Wastewater
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 650 l/min - Max head (1 Pump): 11 m
- Inlets: I DN 110 - U 2" - S DN 75
- Weight: 125.4 kg
See Lifting Stations For Blackwater on Comid.com.

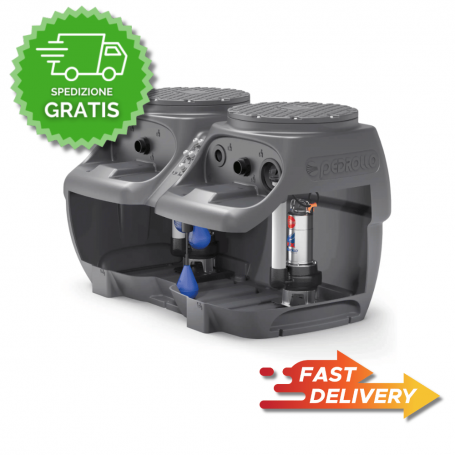

Waste water lifting station pedrollo sar550 with vxm 15/50 1.50 hp - vortex
The Pedrollo SAR550 Lifting Station with double VXm 15/50 electric pump is a Vortex solution for lifting sewage, suitable when high flow rate and floor or underground installation need to be combined.
550-liter tank with two walkable covers up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Version for dirty wastewater.
- Usage: Vortex - Dirty Wastewater
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 650 l/min - Max head (1 Pump): 11 m
- Inlets: I DN 110 - U 2" - S DN 75
- Weight: 125.4 kg
See Lifting Stations For Blackwater on Comid.com.
Overview
SAR550s are storage and lifting stations for civil and industrial wastewater, which can be installed on the floor or underground, indoors or outdoors. Vortex versions are suitable for dirty wastewater.
Typical Applications.
- Lifting Dirty Wastewater With High Flow Rates
- Installations Where Gravity Drainage Is Not Available
- Installations In Buildings And Outdoor Areas
Supplied Components
- Reservoir: 550 Liters - Two Lids Up To 100 kg (Non-Trackable)
- Two Pumps: Single Phase Pre-Installed And Connected To The Switchboard
- Switchboard: E2 - Three Floats: Alternate - Maximum - Minimum
- Cable: 10 m
Model Performance
- Configuration: Vortex (Dirty Wastewater)
- Pump: VXm 15/50
- Power (P2) (1 Pump): 1.1 kW - 1.50 HP
- Max flow rate (1 Pump): 650 l/min
- Max head (1 Pump): 11 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 2" (Male) - S DN 75
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 125.4 kg
Selection Tip
Suitable if you are looking for a Vortex with flow rate up to 650 l/min and 2" discharge. Performance indicated for 1 pump.
Executions And Optional On Request
- Two single-phase electric pumps to be chosen according to requirements.
- Three-phase Version
- Alarm Kit (KSKIT-ALARM): Panel, Siren, Floater
- Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 1.1
- CAPACITY
- 550
