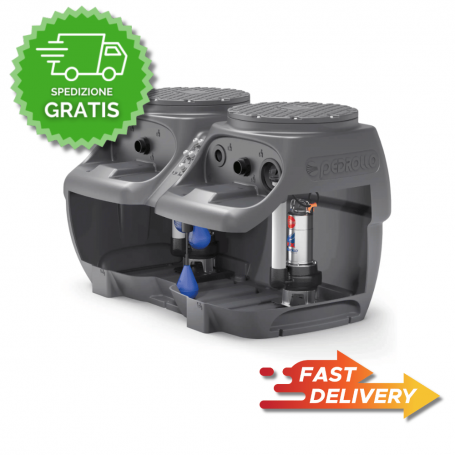

Waste water lifting station pedrollo sar550 with vxm 15/35 1.50 hp - vortex

Overview

SAR550s are storage and lifting stations for clear, rain or sewage water from civil and industrial wastewater, where the sewer system is distant or cannot be reached by gravity. Installation in the floor or underground, indoors or outdoors. Vortex versions are suitable for dirty wastewater.

Typical Applications.

• Dirty Wastewater In Buildings, Offices Or Public Facilities
• Disposal of Storm Water in Squares or Parking Lots
• Systems Where Operational Continuity With Double Pump Is Needed

Supplied Components

• Tank: Polyethylene - 550 Liters - Two Lids Walkable Up To 100 kg (Not Walkable)
• Two Pumps: Single-phase Pre-installed And Connected To The Switchboard Included
• Switchboard: E2 - Three Floats: Alternating - Maximum - Minimum
• Cable: 10 m

Model Performance

• Configuration: Vortex (Dirty Wastewater)
• Pump: VXm 15/35
• Power (P2) (1 Pump): 1.1 kW - 1.50 HP
• Max flow rate (1 Pump): 500 l/min
• Max head (1 Pump): 13.5 m

Connections, Dimensions And Weight

• Outlets: I DN 110 - U 1½" (Male) - S DN 50
• Overall dimensions (mm): 1476 x 550 x 884
• Weight: 124.4 kg

Selection Tip

Suitable if you want a Vortex with head up to 13.5 m and flow rate up to 500 l/min. Performance indicated for 1 pump.

Executions And Optional On Request

• Two single-phase electric pumps to be chosen according to requirements.
• Three-phase Version
• Alarm Kit (KSKIT-ALARM): Panel, siren, float switch
• Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
• Ball Check Valve And Ball Valve In The Exhaust Pipeline.
