Pedrollo sar40 wastewater lifting station with rxm 1-gm 0.33hp - drainage

Overview

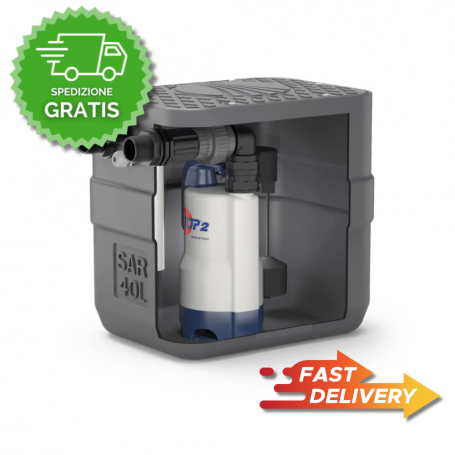

The Pedrollo SAR40 Lifting Station SAR 40 - RXm 1-GM is a storage and lifting station designed for the collection and relaunching of clear, rain and wastewater from domestic drains (washing machines, dishwashers, sinks) when the sewer system is too far away or cannot be reached by gravity.

Typical Applications.

• Domestic Sewage Lifting In the Absence Of Slope
• Aboveground Or Underground Installations
• Use In Basements And Single Dwelling Unit Garages

Model Technical Data

• Type: SAR 40 - RXm 1-GM (Electric Drainage Pumps) - Suitable For Clear Waste Water
• Power (P2): 0.25 kW - 0.33 HP
• Max flow rate: 160 l/min
• Max head: 7.0 m
• Tank: Polyethylene - Capacity 40 liters - Lid Not Walkable And Not Carriageable
• Inlets: I 1½" - U 1¼" - S ½" (Male threaded connection)
• Height h: 305 mm - Weight: 15.2 kg
• Power Cable: 5 m (Standard)
• Max. overall dimensions Tank: 448 x 410 x 310 mm

Advantages

• Compact Format For Technical Installations In Small Spaces
• 40-Liter Polyethylene Tank With Non-Slip-On, Non-Trackable Lid
• Clapet Check Valve For Drainage Pump Versions Only

Selection Tips

Evaluate RXm 1-GM when use is for clear wastewater and more head is needed than other drainage versions: up to 7.0 m with maximum flow 160 l/min.

Notes

• Versions On Request: Version With Float; 10 m Power Cable
