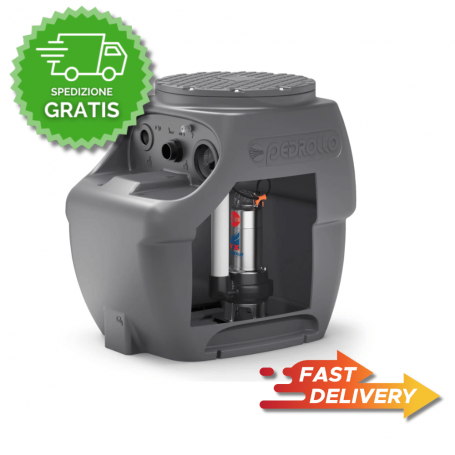

Pedrollo sar250 wastewater lifting station with top 4 1.00 hp - drainage

Overview

The Pedrollo SAR250 Lifting Stations are suitable for collecting and lifting clear, rain and wastewater from residential and civil drains (washing machines, dishwashers, sinks and toilets), when the sewer system is distant or cannot be reached by gravity.

The SAR 250 - TOP 4 version can be installed in the floor or underground, indoors or outdoors, and is designed for buildings with multiple residential units.

Typical Applications.

• Lifting Wastewater In Technical Rooms, Basements And Areas Where There Is No Slope
• Domestic And Civil Drains (washing machines, dishwashers, sinks, toilets)
• Floor or underground installation, even outdoors

Main Components

• Tank: Polyethylene - 250 liters - Lid Not Walkable, Walkable Up To 100 kg
• Electric Pump: Submersible Single Phase
• Power Cable: 10 m (Standard)

Model Performance

• Pump: TOP 4 - Usage: Drainage (Clear Waste Water)
• Power (P2): 0.75 kW - 1.0 HP
• Max Flow Rate: 320 l/min
• Maximum head: 12.5 m

Connections, Overall Dimensions & Weight

• Outlets: I DN 110 - U 1½" (Male Threaded) - S DN 50
• Overall dimensions (mm): 902 x 550 x 884
• Weight: 53.3 kg

Selection Tip

Choose TOP 4 when you want a drainage SAR250 with performance up to 320 l/min and head up to 12.5 m.

Notes And Options

• Version With Float (On Request)
• Three-phase Submersible Electric Pump (On Request)
• Alarm Kit (Code KSKIT-ALARM) (On Request)
• 300 mm Extension Kit (Code KSKIT-308MA) (On Request)
• Ball Check Valve And Delivery Ball Valve (On Request)
