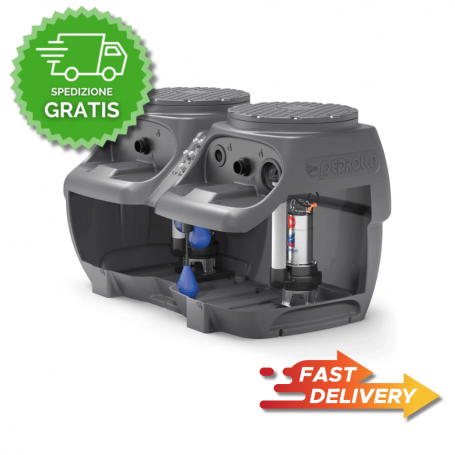

The Pedrollo SAR550 Lifting Station with double VXm 10/35 electric pump in Vortex execution is suitable for lifting sewage when gravity discharge is not available, in civil and industrial settings.
550-liter polyethylene tank with two walkable lids up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Vortex version for dirty wastewater.
- Usage: Vortex - Dirty Wastewater.
- Power (P2) (1 Pump): 0.75 kW - 1.00 HP
- Max flow rate (1 Pump): 400 l/min - Max head (1 Pump): 10 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Weight: 118.8 kg
Discover Blackwater Solutions at Comid.com.au.
Waste water lifting station pedrollo sar550 with vxm 10/35 1.00 hp - vortex
The Pedrollo SAR550 Lifting Station with double VXm 10/35 electric pump in Vortex execution is suitable for lifting sewage when gravity discharge is not available, in civil and industrial settings.
550-liter polyethylene tank with two walkable lids up to 100 kg (not driveway), E2 panel and three floats for alternation and levels. Vortex version for dirty wastewater.
- Usage: Vortex - Dirty Wastewater.
- Power (P2) (1 Pump): 0.75 kW - 1.00 HP
- Max flow rate (1 Pump): 400 l/min - Max head (1 Pump): 10 m
- Outlets: I DN 110 - U 1½" - S DN 50
- Weight: 118.8 kg
Discover Blackwater Solutions at Comid.com.au.
Overview
SAR550s are storage and lifting stations for clear, rain or sewage water from civil and industrial wastewater, where the sewer system is distant or cannot be reached by gravity. Installation in the floor or underground, indoors or outdoors. Vortex versions are suitable for dirty wastewater.
Typical Applications.
- Black Water Discharge and Wastewater Management in Domestic and Industrial Settings
- Disposal of stormwater in yards or parking lots
- Floor or Underground Installation When Gravity Drainage Is Not Possible
Supplied Components
- Reservoir: 550 Liters - Two Lids Up To 100 kg (Not Walkable)
- Two Electric Pumps: Single-phase, Pre-installed And Connected To The Switchboard Included
- Switchboard: E2 - Three Floats: Alternating - Maximum - Minimum
- Cable: 10 m (Standard)
Model Performance
- Configuration: Vortex (Suitable for Dirty Wastewater)
- Pump: VXm 10/35
- Power (P2) (1 Pump): 0.75 kW - 1.00 HP
- Max flow rate (1 Pump): 400 l/min
- Max Head (1 Pump): 10 m
Connections, Dimensions And Weight
- Outlets: I DN 110 - U 1½" (Male) - S DN 50
- Overall dimensions (mm): 1476 x 550 x 884
- Weight: 118.8 kg
Selection Tip
Vortex choice for dirty effluent with performance up to 400 l/min and head up to 10 m. Performance shown for 1 pump.
Executions And Optional On Request
- Two single-phase electric pumps to be chosen according to requirements.
- Three-phase Version
- Alarm Kit (KSKIT-ALARM): Panel, self-powered siren, float switch
- Extension Kit 300 mm (KSKIT-308MA): Two Kits Needed for SAR550
- Ball Check Valve And Ball Valve In The Exhaust Pipeline.
- BRAND
- PEDROLLO
- POWER (Kw)
- 0.75
- CAPACITY
- 550
