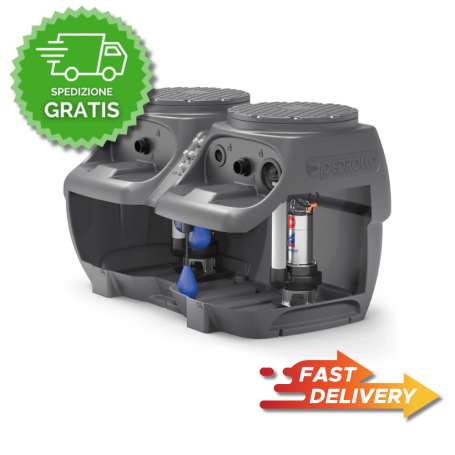

Pedrollo sar550 sewage lifting station with dm 20 1.00 hp - drainage

Overview

Pedrollo SAR550 Accumulation And Lifting Stations are suitable for collecting and lifting clear, rain or sewage water from civil and industrial wastewater, where the sewer system is distant or cannot be reached by gravity. Floor or underground installation, indoors or outdoors, for residential buildings, offices, or public establishments.

Typical Applications.

• Black Water Drainage In Residential, Office Or Public Buildings
• Disposal of stormwater in yards or parking lots
• Civil and Industrial Installations Where Gravity Drainage Is Not Available

Supplied Components

• Tank: Polyethylene - 550 Liters - Two Lids Not Walkable, Walkable Up To 100 kg
• Pumps: Two single-phase electric pumps (without float switch) pre-installed and connected to the switchboard provided
• Switchboard: Model E2
• Floats: Alternating - Maximum Level (Second Pump Start) - Minimum Level (Stop)
• Cable: 10 m (Standard)

Model Performance

• Configuration: SAR550 With Drainage Pumps (Suitable For Clear Waste Water)
• Pump: Dm 20
• Power (P2) (1 Pump): 0.75 kW - 1.00 HP
• Max flow rate (1 Pump): 250 l/min
• Max Head (1 Pump): 19 m

Connections, Dimensions And Weight

• Outlets: I DN 110 - U 1½" (Male Threaded Port) - S DN 50
• Overall dimensions (mm): 1476 x 550 x 884
• Weight: 116.4 kg

Selection Tip

Suitable when higher head is needed than basic drainage versions. Flow rate and head values are given for 1 pump.

Executions And Optional On Request

• Two single-phase electric pumps to be chosen according to requirements.
• Three-phase version
• Alarm Kit (Code KSKIT-ALARM): Electrical panel, self-powered siren, float switch
• Extension Kit 300 mm (Code KSKIT-308MA): Two Kits are needed for SAR550.
• "SAR" Stations With Ball Check Valve And Ball Valve In The Drain Pipe
