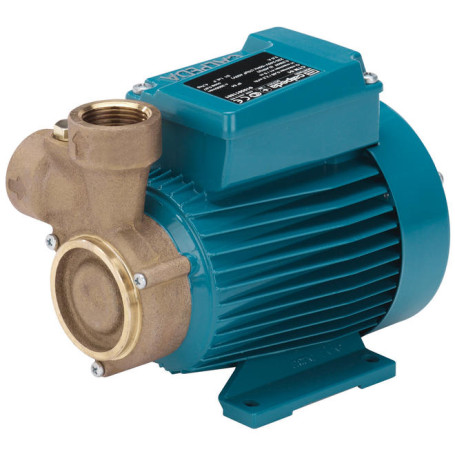

CALPEDA ELECTRIC PUMP BT 61E 400V
zoom_out_map
chevron_left chevron_right
Shipping expected within 7 working days


Calpeda electric pump bt 61e 400v

€401.57 (tax incl.) Iva inclusa
€590.54 -32%
new_releases Expected shipping within 7 working days
migliori ecommerce italia forniture industriali
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
migliori ecommerce italia forniture industriali
24 mesi di garanzia
Icona supporto telefonico
Hai bisogno di ulteriori informazioni? Contattaci

Usage limits:

  • Liquid temperature: -10 °C to +90 °C.
  • Ambient temperature up to 40 °C.
  • Manometric suction height up to 7 m.
  • Maximum permissible final pressure in the pump body: T series 12.5 bar, TP series 16 bar.
  • Maximum permissible final pressure in the pump body: 6 bar.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n = 2900 1/min).
  • T, TP: three-phase 230/400 V ± 10%, up to 3 kW; 400/690 V ± 10%, 4 to 7.5 kW.
  • Insulation class F.
  • IP 54 protection.
  • Three-phase motors with efficiency class IE3 (IE2 up to 0.65 kW).
  • Execution according to EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.

71020022000
BRAND
CALPEDA
POWER (Kw)
0,33
MATERIAL
BRONZE
TI65EST
