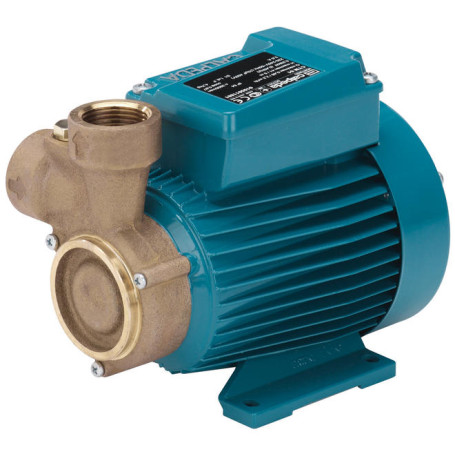

CALPEDA BT 70/B 400V ELECTRIC PUMP

Usage limits:

• Liquid temperature: -10 °C to +90 °C.
• Ambient temperature up to 40 °C.
• Manometric suction height up to 7 m.
• Maximum permissible final pressure in the pump body: T series 12.5 bar, TP series 16 bar.
• Maximum permissible final pressure in the pump body: 6 bar.
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n = 2900 1/min).
• T, TP: three-phase 230/400 V ± 10%, up to 3 kW; 400/690 V ± 10%, 4 to 7.5 kW.
• Insulation class F.
• IP 54 protection.
• Three-phase motors with efficiency class IE3 (IE2 up to 0.65 kW).
• Execution according to EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
