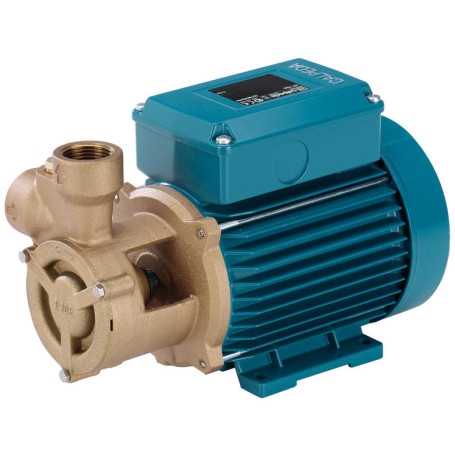

CALPEDA ELECTRIC PUMP BTM 70/A 230V
zoom_out_map
chevron_left chevron_right
Shipping expected within 7 working days

Calpeda electric pump btm 70/a 230v

€469.55 (tax incl.)
€690.52 -32%
new_releases Expected shipping within 7 working days

Payment methods

pagamenti

migliori ecommerce italia forniture industriali
Best E-commerce in Italy for industrial supplies - la Repubblica
migliori ecommerce italia forniture industriali
24 month warranty
Icona supporto telefonico
Do you need more information? Contact us

Usage limits.

  • Liquid temperature: -10 °C to +90 °C.
  • Ambient temperature up to 40 °C.
  • Manometric suction height up to 7 m.
  • Maximum permissible final pressure in the pump body: T series 12.5 bar, TP series 16 bar.
  • Maximum permissible final pressure in the pump body: 6 bar.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n = 2900 1/min).
  • TM, TPM: single-phase 230 V ± 10%, with thermal protector.
  • Capacitor inserted in terminal box.
  • Insulation class F. IP 54 protection.
  • Three-phase motors with efficiency class IE3 (IE2 up to 0.65 kW).
  • Execution according to EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
71120040000
BRAND
CALPEDA
MATERIAL
BRONZE
POWER (Kw)
0.75
ALIMENTATION (V.)
230
