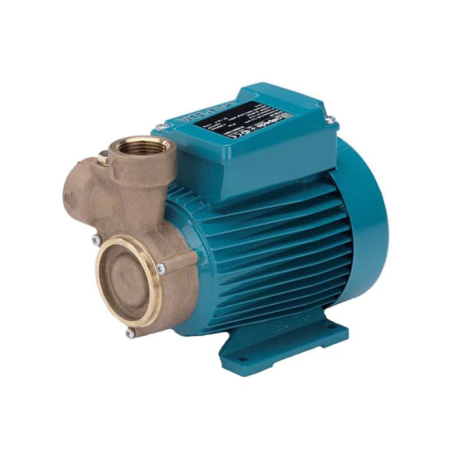

CALPEDA ELECTRIC PUMP B-CTM 61/A V. 230 - PERIPHERAL IMPELLER

Execution

Close-coupled electric pumps with peripheral impeller.

Compact, patented construction with motor housing and wall

pump side in one piece.

Protected from water entering the motor from outside.

CT: version with cast iron pump body.

B-CT: version with bronze pump body.

Bronze pumps are supplied fully painted.

Uses

For clean liquids without abrasive, suspended parts,

non-explosive, non-aggressive to pump materials.

To increase the pressure available from a distribution network (observe local requirements).

Because of their small size, these electric pumps are excellently suited for installation in machines and equipment for cooling, air conditioning and circulation.

Limits of use.

Liquid temperature up to 60 °C.

Ambient temperature up to 40 °C.

Manometric suction height up to 7 m.

Continuous duty.

Motor

2-pole induction motor, 50 Hz (n = 2900 1/min).

CT 61: three-phase 230/400 V ± 10%.

CTM 61: single-phase 230 V ± 10%, with thermal protector.

Capacitor inserted in terminal box.

Insulation class F.

IP 54 protection.

Execution according to: EN 60034-1;

EN 60335-1, EN 60335-2-41.

Special executions on request.

- Other voltages.

- 60 Hz frequency (see 60 Hz catalog).

- Special mechanical seal.
