LOWARA CEA 70/3/A centrifugal single-impeller pump with axial suction and radial discharge and with stainless steel threaded ports. Pump for domestic and industrial use. Construction is compact with motor and pump directly coupled; special protruding motor shaft in common with pump, supported by ball bearings. The rotating part is removable from the control side without removing the pump body from the system piping. Asynchronous motor, cage rotor, enclosed construction, external ventilation.
Available on request "V" versions with FPM elastomers for temperatures up to 110 °C and "N" versions completely in AISI 316 stainless steel.

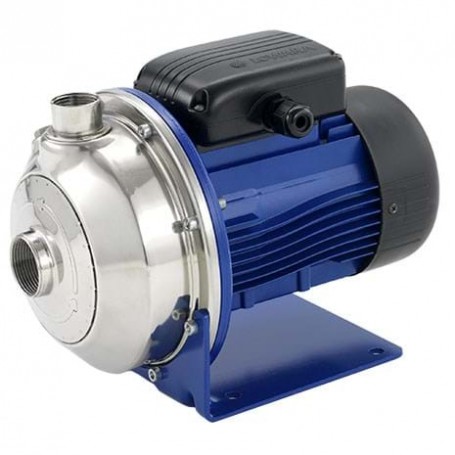

Electric pump lowara cea 70/3/a 0.37 kw - 0.5 hp 230/400v
LOWARA CEA 70/3/A centrifugal single-impeller pump with axial suction and radial discharge and with stainless steel threaded ports. Pump for domestic and industrial use. Construction is compact with motor and pump directly coupled; special protruding motor shaft in common with pump, supported by ball bearings. The rotating part is removable from the control side without removing the pump body from the system piping. Asynchronous motor, cage rotor, enclosed construction, external ventilation.
Available on request "V" versions with FPM elastomers for temperatures up to 110 °C and "N" versions completely in AISI 316 stainless steel.
APPLICATIONS
- Conveyance of water and chemically and mechanically nonaggressive liquids
- Water supply
- Water circulation (cold, hot, chilled)
- Irrigation
- Reverse osmosis (where demineralized water is present)
- Industrial washing
- Thermal waters
- Chlorine dosing for swimming pools
- Goldsmith industry
- Wine production
SPECIFICATIONS
- Flow rate: up to 80 l/min - 4.8 m³/h
- Head: up to 31.1 m
- Power supply: three-phase
- Power: from 0.55 kW 0.75 Hp
- Maximum pressure: 8 bar
- Liquid temperature from -10°C to +85°C standard version.
CONSTRUCTION FEATURES.
- Single-block, single-impeller centrifugal pump with axial suction and radial discharge.
- Compact construction with motor and pump directly coupled; special protrusion motor shaft in common with pump, supported by ball bearings
- Rotating part removable from the drive side without removing the pump body from the system piping
- Threaded suction and discharge ports (Rp ISO 7)
- High-efficiency closed-type impeller made of AISI 304 stainless steel (AISI 316 AISI 316 for N version)
- Mechanical seal with Ceramic/Carbon rings, NBR elastomers, (EPDM for N version) other parts in AISI 304 stainless steel (AISI 316 for N version), mounting dimensions according to EN 12756 (formerly DIN 24960) and ISO 3069.
- O-rings made of NBR (EPDM for N version).
- Foot support on the pump body.
MOTOR
- Asynchronous, cage rotor, enclosed construction, external ventilation.
- Degree of protection: IP55.
- Insulation class 155 (F).
- Performance according to EN 60034-1.
- - Three-phase versions: 220-240/380-415 V 50 Hz, 2 poles, overload protection must be provided in the control panel by the user.
- Condensate drain plugs in standard version.
- BRAND
- LOWARA
- ALIMENTATION (V.)
- 230/400
- POWER (Kw)
- 0.37
