HYDROFRESH
automatic pressure groups (HYDROFRESH GROUPS)
The HYDROFRESH unit is ideal for domestic water supply or irrigation of gardens and vegetable gardens and is available with 24-liter or 60-liter horizontal expansion vessels. It is an economical ready-to-use solution for domestic pressurization, thanks to the combination of:
- expansion tank, which limits the number of starts and compensates for the pressure drop when a tap is opened;
- pressure switch, which allows the electric pump to start or stop automatically.
Type | Power (P2) kW | Power (P2) HP | Capacity (liters) | Flow rate (1) (liters/min) | Calibration (2) (bar) |
---|---|---|---|---|---|
HYDROFRESH 24 CL | |||||
FUTURE JETm 1A - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
HYDROFRESH 60 CL | |||||
FUTURE JETm 1A - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |

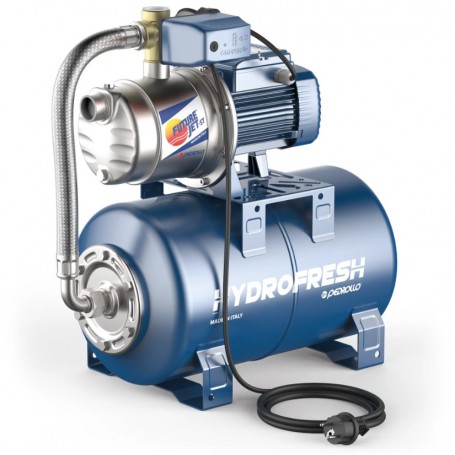

Pedrollo hydrofresh pressurization group futurejetm 1a - 24cl 0.75 hp
HYDROFRESH
automatic pressure groups (HYDROFRESH GROUPS)
The HYDROFRESH unit is ideal for domestic water supply or irrigation of gardens and vegetable gardens and is available with 24-liter or 60-liter horizontal expansion vessels. It is an economical ready-to-use solution for domestic pressurization, thanks to the combination of:
- expansion tank, which limits the number of starts and compensates for the pressure drop when a tap is opened;
- pressure switch, which allows the electric pump to start or stop automatically.
Type | Power (P2) kW | Power (P2) HP | Capacity (liters) | Flow rate (1) (liters/min) | Calibration (2) (bar) |
---|---|---|---|---|---|
HYDROFRESH 24 CL | |||||
FUTURE JETm 1A - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
HYDROFRESH 60 CL | |||||
FUTURE JETm 1A - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
Payment methods



COMPONENTS:
- FutureJet single-phase electric pump
- Expansion tank
- PSG-1 pressure switch
- Pressure gauge
- Hose
- Brass fitting
- 1.5-meter cable with Schuko plug
Flow rate |
up to 120 l/min (7.2 m³/h) |
Headroom | up to 55 m |
Manometric suction height | up to 9 m |
Liquid temperature | -10 °C up to +40 °C |
Ambient temperature | up to +40 °C |
Maximum pressure in the pump housing | - 6 bar for FUTURE JET 1 - 7 bar for FUTURE JET 2 |
Motor | 2 poles |
Degree of protection | IP X4 |
Table of Dimensions and Weights
Model | Capacity (liters) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
---|---|---|---|---|---|
FUTURE JETm 1A - 24 CL | 24 | 535 | 255 | 520 | 18.7 |
FUTURE JETm 2C - 24 CL | 24 | 535 | 255 | 530 | 22.0 |
FUTURE JETm 1A-ST - 24 CL | 24 | 535 | 255 | 560 | 15.8 |
FUTURE JETm 2C-ST - 24 CL | 24 | 535 | 255 | 570 | 19.2 |
FUTURE JETm 1A - 60 CL | 60 | 730 | 340 | 657 | 23.7 |
FUTURE JETm 2C - 60 CL | 60 | 730 | 340 | 675 | 27.0 |
FUTURE JETm 1A-ST - 60 CL | 60 | 730 | 340 | 678 | 20.8 |
FUTURE JETm 2C-ST - 60 CL | 60 | 730 | 340 | 703 | 24.2 |
Descriptive Table
Type |
Power (P2) kW |
Power (P2) HP |
Capacity (liters) |
Flow rate (1) (liters/min) |
Calibration (2) (bar) |
---|---|---|---|---|---|
HYDROFRESH 24 CL |
|||||
FUTURE JETm 1A - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
HYDROFRESH 60 CL |
|||||
FUTURE JETm 1A - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
FUTURE JETm 1A-ST - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
FUTURE JETm 2C-ST - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
(1) Maximum flow rate relative to the minimum pressure switch calibration.
(2) Pressure switch calibration (recommended)
- BRAND
- PEDROLLO
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 0.55
- CAPACITY
- 24
