HYDROFRESH
automatic pressure groups (HYDROFRESH GROUPS)
The HYDROFRESH unit is ideal for domestic water supply or irrigation of gardens and vegetable gardens and is available with 24-liter or 60-liter horizontal expansion vessels. It is an economical ready-to-use solution for domestic pressurization, thanks to the combination of:
- expansion tank, which limits the number of starts and compensates for the pressure drop when a tap is opened;
- pressure switch, which allows the electric pump to start or stop automatically.
Shipping expected within 7 working days

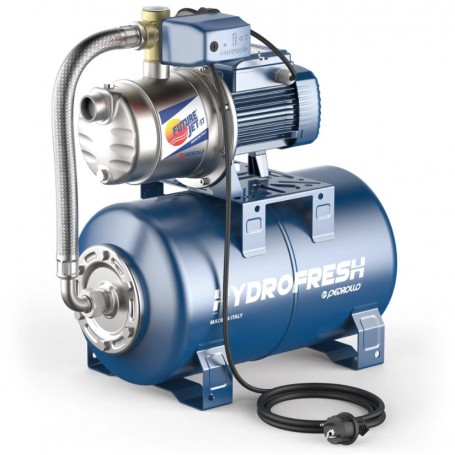

Gruppo di pressurizzazione pedrollo hydrofresh futurejetm 2c - 24cl
HYDROFRESH
automatic pressure groups (HYDROFRESH GROUPS)
The HYDROFRESH unit is ideal for domestic water supply or irrigation of gardens and vegetable gardens and is available with 24-liter or 60-liter horizontal expansion vessels. It is an economical ready-to-use solution for domestic pressurization, thanks to the combination of:
- expansion tank, which limits the number of starts and compensates for the pressure drop when a tap is opened;
- pressure switch, which allows the electric pump to start or stop automatically.
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
24 mesi di garanzia
Hai bisogno di ulteriori informazioni? Contattaci
COMPONENTS:
- FutureJet single-phase electric pump
- Expansion tank
- PSG-1 pressure switch
- Pressure gauge
- Hose
- Brass fitting
- 1.5-meter cable with Schuko plug
|
Flow rate |
up to 120 l/min (7.2 m³/h) |
| Headroom | up to 55 m |
| Manometric suction height | up to 9 m |
| Liquid temperature | -10 °C up to +40 °C |
| Ambient temperature | up to +40 °C |
| Maximum pressure in the pump housing | - 6 bar for FUTURE JET 1 - 7 bar for FUTURE JET 2 |
| Motor | 2 poles |
| Degree of protection | IP X4 |
Table of Dimensions and Weights
| Model | Capacity (liters) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FUTURE JETm 1A - 24 CL | 24 | 535 | 255 | 520 | 18.7 |
| FUTURE JETm 2C - 24 CL | 24 | 535 | 255 | 530 | 22.0 |
| FUTURE JETm 1A-ST - 24 CL | 24 | 535 | 255 | 560 | 15.8 |
| FUTURE JETm 2C-ST - 24 CL | 24 | 535 | 255 | 570 | 19.2 |
| FUTURE JETm 1A - 60 CL | 60 | 730 | 340 | 657 | 23.7 |
| FUTURE JETm 2C - 60 CL | 60 | 730 | 340 | 675 | 27.0 |
| FUTURE JETm 1A-ST - 60 CL | 60 | 730 | 340 | 678 | 20.8 |
| FUTURE JETm 2C-ST - 60 CL | 60 | 730 | 340 | 703 | 24.2 |
Descriptive Table
| Type |
Power (P2) kW |
Power (P2) HP |
Capacity (liters) |
Flow rate (1) (liters/min) |
Calibration (2) (bar) |
|---|---|---|---|---|---|
|
HYDROFRESH 24 CL |
|||||
| FUTURE JETm 1A - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
| FUTURE JETm 2C - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
| FUTURE JETm 1A-ST - 24 CL | 0.55 | 0.75 | 24 | 90 | 1.2 - 3.2 |
| FUTURE JETm 2C-ST - 24 CL | 0.75 | 1 | 24 | 110 | 1.2 - 3.2 |
|
HYDROFRESH 60 CL |
|||||
| FUTURE JETm 1A - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
| FUTURE JETm 2C - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
| FUTURE JETm 1A-ST - 60 CL | 0.55 | 0.75 | 60 | 90 | 1.2 - 3.2 |
| FUTURE JETm 2C-ST - 60 CL | 0.75 | 1 | 60 | 110 | 1.2 - 3.2 |
(1) Maximum flow rate relative to the minimum pressure switch calibration.
(2) Pressure switch calibration (recommended)
I46FJ002CA1EU
- BRAND
- PEDROLLO
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 0.75
- CAPACITY
- 24
