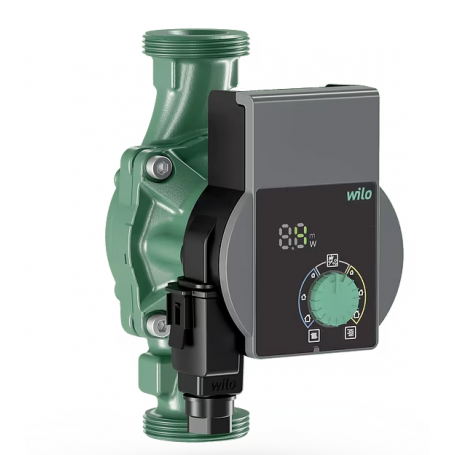

WILO SINGLE ELECTRONIC CIRCULATOR YONOS PICO1.0 25/1-8-130 RP 1" 130
Standard electronic single PICO1.0 25/1-8 wet rotorstandard circulator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control.
Special features / Product advantages :
- Green push-button technology enables quick and intuitive commissioning.
- Manual restart function and degassing routine.
- Display of instantaneous power consumption in W.
Accettiamo i seguenti metodi di pagamento
Description:
PICO1.0 30/1-8 single standard electronic wet rotor PICO1.0 30/1-8 circulator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control.
Key readout:
Example: Wilo-Yonos PICO1.0 25/1-4-130
Yonos > High-efficiency pump (nozzle pump),
PICO1.0 > electronically regulated
25/ > Nominal connection diameter
1-4 > Nominal head range [m]
130 > Construction length
Application:
Water heating systems of all kinds, air conditioning systems, industrial circulation systems.
Technical data (referring to the whole range):
- Fluid temperature -10 °C to +95 °C
- Mains power supply 1~230 V, 50 Hz
- IPX4D degree of protection
- Port connections Rp ½, Rp 1 and Rp 1¼
- Max. operating pressure 10 bar
- BRAND
- WILO
- INCHES
- 1
