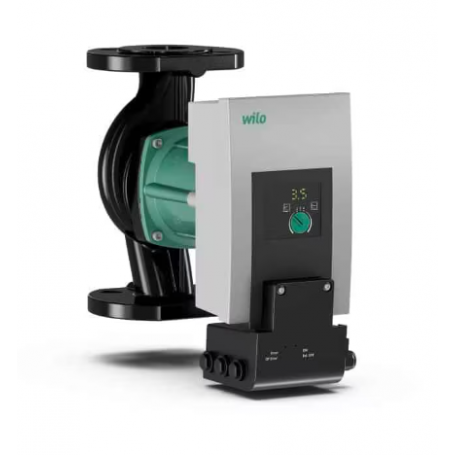

WILO SINGLE ELECTRONIC CIRCULATOR YONOS MAXO-I 40/0.5-8 DN40 PN6/10 220
YONOS MAXO-I 40/0.5-8 single standard electronic wet rotorcirculator with threaded or flanged connections, EC permanent magnet motor for automatic performance adjustment complete with Wilo-Connect Module.
Product Special Features/Benefits :
- LED indicator provides clear indication of set head rating, speed stage and possible errors.
- Easy setting via speed stages when replacing a standard pump that is not electronically regulated.
- Segmented LED display to show head and error codes.
Accettiamo i seguenti metodi di pagamento
Description:
YONOS MAXO-I 40/0.5-8 single standard electronic wet rotor circulator with threaded or flanged connections, EC permanent magnet motor for automatic performance adjustment complete with Wilo-Connect Module.
Key readout.
Example: Yonos MAXO-I 30/0.5-12
Yonos > high-efficiency circulator
MAXO > electronically regulated
-I > Full version of Wilo-Connect Module*
-D > Twin design
30/ > Nominal connection diameter (Rp/DN)
0.5-12 > Nominal head range (m)
Applications:
Heating, air conditioning and refrigeration systems.
Technical Data:
Allowable fluids: Heating and cooling water according to VDI
2035 and UNI 8065.
Mixture of water and glycol max 1:1.
Operating range: Fluid temperature from -20°C to +110°C
Electrical characteristics: Mains power supply 1 ~ 230 V
Frequency 50 Hz
Motor: Degree of protection IP X4D
Insulation class F
- BRAND
- WILO
