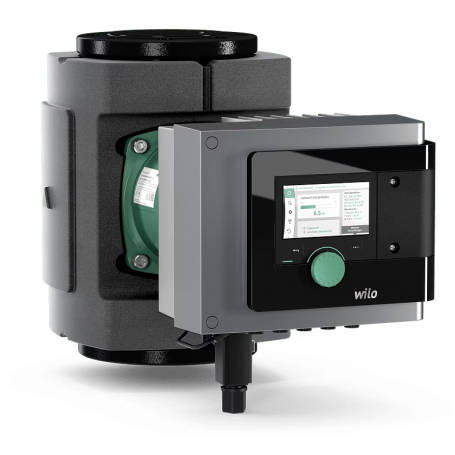

WILO STRATOS MAXO 25/0.5-12 1" 180 SINGLE ELECTRONIC CIRCULATOR
Single SMART electronic STRATOS MAXO 25/0.5-12 wet rotorcirculator with flanged or threaded connections, EC permanent magnet motor technology optimized for automatic performance adjustment.
Special Features / Product Advantages :
- Setting of the specific adjustment function for the type of system through menu guided (Setup Guide)
- Large 4.2" full-screen LED display for viewing different operating parameters.
- Connection through standard Bluetooth interface for integral management of the pumping system from regulation to display of different operating parameters.
Accettiamo i seguenti metodi di pagamento
Description:
STRATOS MAXO 25/0.5-12 single SMART electronic wet rotor circulator with flanged or threaded connections, EC permanent magnet motor technology optimized for automatic performance adjustment.
Key readout:
Example:
Wilo-Stratos MAXO 30/0.5-12
Stratos > High-efficiency pump (nozzle or flanged pump)
MAXO > electronically regulated
30/ > Nominal connection diameter
0.5-12 > Nominal head range [m]
-R7 > without integrated Stratos MAXO temperature sensor
-P1 > Version free of substances that interfere with paint wetting
Application:
All hot water heating systems, air conditioning systems, closed cooling circuits, industrial circulation systems.
Technical data (referring to the whole range):
- Permissible temperature range -10 °C to +110 °C, -10 °C to +90 °C (version "-R7")
- Mains power supply 1~230 V, 50/60 Hz
- IPX4D degree of protection
- Socket or flange connection (depending on type) Rp 1 up to DN 100
- Max. operating pressure standard version: 6/10 bar or 6 bar (special version: 10 bar or 16 bar)
- Insulation class: F
- Electromagnetic noise emission according to: EN 61800-3:2004+A1:2012/residential environment (C1)
- Noise immunity according to: EN 61800-3:2004+A1:2012/industrial environment (C2)
- Max. flow rate. Q: 74 m³/h
- Max head. H: 16 m
