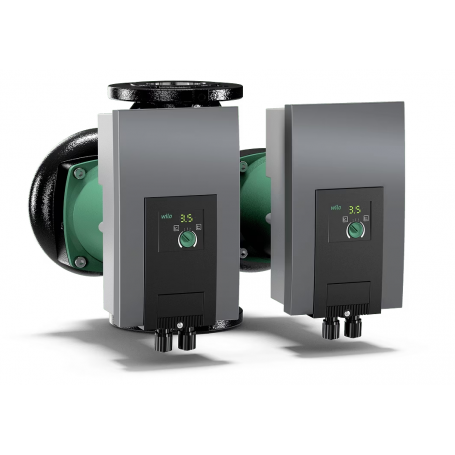

YONOS MAXO-D 40/0.5-12twin standard electronic wet rotorcirculator with flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Special Features/Product Advantages :
- LED indicator provides a clear view regarding head rating, speed stage or possible errors
- Easy setting via speed stages in case of replacing an unregulated standard pump
- Simplified electrical connection thanks to Wilo plug
- System safety thanks to cumulative lockout signaling
- Compact construction, simple and proven operation
Wilo twin electronic circulator yonos maxo-d 40/0.5-12 dn40 pn6/10 250
YONOS MAXO-D 40/0.5-12twin standard electronic wet rotorcirculator with flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Special Features/Product Advantages :
- LED indicator provides a clear view regarding head rating, speed stage or possible errors
- Easy setting via speed stages in case of replacing an unregulated standard pump
- Simplified electrical connection thanks to Wilo plug
- System safety thanks to cumulative lockout signaling
- Compact construction, simple and proven operation
Description:
YONOS MAXO-D 40/0.5-12 twin standard electronic wet rotor circulator with flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Key readout:
Example: Wilo-Yonos MAXO-D 32/0.5-7
Yonos MAXO > High-efficiency pump (glanded or flanged pump), electronically regulated
-D > Double pump
32/ > Nominal connection diameter
0.5-7 > Nominal head range [m]
Applications:
All heating systems, air conditioning systems, closed refrigeration circuits, industrial circulation systems.
Technical data:
- Permissible temperature range -20°C to +110°C
- Mains power supply 1~230 V, 50/60 Hz
- Degree of protection IP X4D
- Flanged connection from DN 32 up to DN 80
- Max. operating pressure standard version: 6/10 bar or 6 bar (special version: 10 bar)
- BRAND
- WILO
