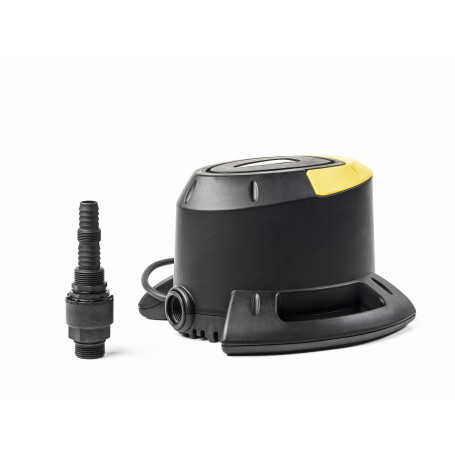

Electric submersible pool pump dab eurocover kw 0.22

APPLICATIONS
Fully automatic submersible electric pump, wide support base designed to increase its stability and the possibility of operating even in
positions that are not properly perpendicular to the ground.
Built-in float for automatic operation, effective and maintenance-free pump.
Suitable for use during the winter period over swimming pool covers, to remove rainwater and prevent the
cover itself from breaking due to the excessive weight of the accumulated water.
In case of need, it becomes a submersible emptying and draining pump or a portable pump for emergency cases.
PUMP'S CONSTRUCTION CHARACTERISTICS
Electromold made of durable thermoplastic material.
Motor, shaft and hardware made of stainless steel.
Triple interposed ring seal with oil pre-chamber.
Built-in float switch for automatic operation inserted in inspectable housing.
Dedicated to seasonal cleaning
ENGINE CONSTRUCTION CHARACTERISTICS
Submersible, asynchronous continuous duty.
Stator in stainless steel housing covered by wiring cap and capacitor.
Supplied with 10mt cable and Shuko plug / 10mt rope for positioning on tarpaulins.
Multi-hose fitting with clapet valve.

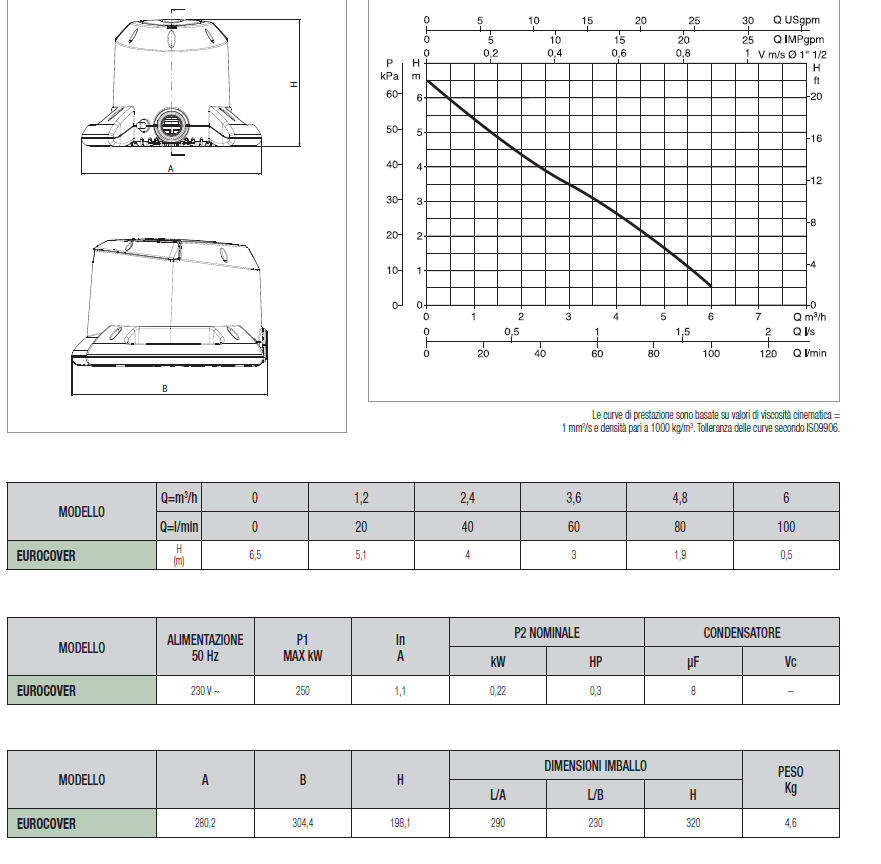

TECHNICAL DATA
Operating range:
from 0.5 to 6 m³/h with head up to 6.5 m
Liquid temperature range:
from 0 to 35 °C (EN 60335-2-41)
Installation: fixed or portable in a vertical position (max. inclination 10°)
Passage granulometry: 5 mm
Automatic start /stop: start 55mm - stop 35mm
Motor protection rating: IP68
Insulation class: F
Power supply voltage: 230V - 50 Hz single-phase.
