Calpeda NMP 32/12DE centrifugal monobloc self-priming electric pumps with built-in prefilter. Inner basket with 3 mm holes. NMP: version with cast iron pump body and fitting. B-NMP: version with bronze pump body and fitting. Bronze pumps are supplied fully painted.
Calpeda NMP 32/12DE has a large capacity stainless steel strainer that is easy to remove for inspection and cleaning. An innovative protective mesh (Patented) prevents contact with rotating parts of the pump, safeguarding user safety. Bearing and shaft sizing are designed to ensure stress reduction while guaranteeing high reliability under all operating conditions.
CLICK ON THE LINK TO RETURN TO THE PAGE OF POOL PUMPS

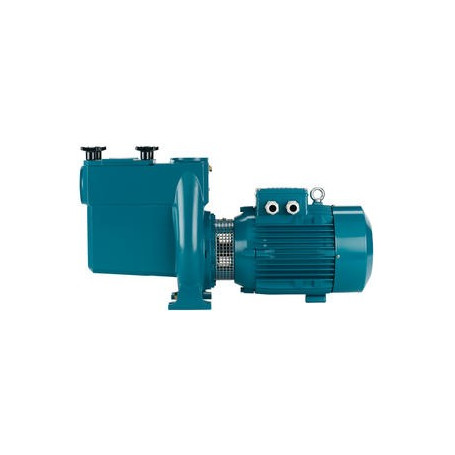

Calpeda electric pump nmp 32/12de 400/50 hz
Calpeda NMP 32/12DE centrifugal monobloc self-priming electric pumps with built-in prefilter. Inner basket with 3 mm holes. NMP: version with cast iron pump body and fitting. B-NMP: version with bronze pump body and fitting. Bronze pumps are supplied fully painted.
Calpeda NMP 32/12DE has a large capacity stainless steel strainer that is easy to remove for inspection and cleaning. An innovative protective mesh (Patented) prevents contact with rotating parts of the pump, safeguarding user safety. Bearing and shaft sizing are designed to ensure stress reduction while guaranteeing high reliability under all operating conditions.
CLICK ON THE LINK TO RETURN TO THE PAGE OF POOL PUMPS
Execution:
- Self-priming monobloc centrifugal electric pumps with built-in prefilter.
- Inner basket with Ø 3 mm holes.
- NMP: version with cast iron pump body and fitting.
- B-NMP: version with bronze pump body and fitting.
- Bronze pumps are supplied fully painted.
Uses
- For circulating water in swimming pool filtration systems.
- For clean or slightly dirty water with suspended solids.
Limits of use:
- Liquid temperature up to 60 °C.
- Ambient temperature up to 40 °C.
- Manometric suction height up to 7 m.
- Maximum permissible final pressure in the pump body 6 bar.
- Continuous service.
Calpeda NMP 32/12DE POOL pump 15m3/h with self-priming filter prefilter Three-phase 0.75kW cast iron Motor
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- NMP: three-phase 230/400 V ± 10% up to 3 kW;
- 400/690 V ± 10% from 4 to 7.5 kW.
- NMPM: single-phase 230 V ± 10%, with thermal protector.
- Class F insulation.
- IP X4 protection.
- BRAND
- CALPEDA
- ALIMENTATION (V.)
- 400
