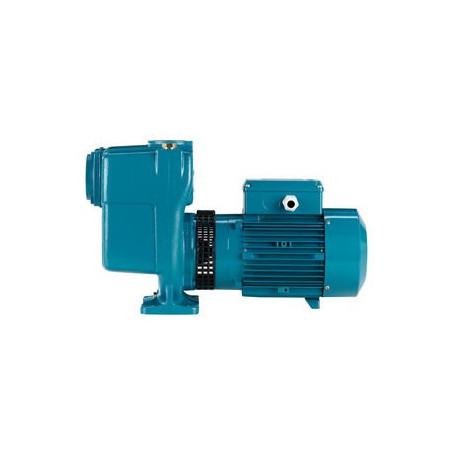

Calpeda NMP 32/12SA 1.5KW centrifugal monobloc self-priming electric pumps with built-in prefilter. Inner basket with 3mm holes. NMP: version with cast iron pump body and fitting. B-NMP: version with bronze pump body and fitting. Bronze pumps are supplied fully painted.
Calpeda NMP 32/12S/A has a large capacity stainless steel strainer that is easy to remove for inspection and cleaning. An innovative protective mesh (Patented) prevents contact with rotating parts of the pump, safeguarding user safety. Bearing and shaft sizing are designed to ensure stress reduction while guaranteeing high reliability under all operating conditions.
CLICK ON THE LINK TO RETURN TO THE PAGE OF POOL PUMPS
Calpeda electropom nmp 32/12sa 1.5kw 400/50 hz
Calpeda NMP 32/12SA 1.5KW centrifugal monobloc self-priming electric pumps with built-in prefilter. Inner basket with 3mm holes. NMP: version with cast iron pump body and fitting. B-NMP: version with bronze pump body and fitting. Bronze pumps are supplied fully painted.
Calpeda NMP 32/12S/A has a large capacity stainless steel strainer that is easy to remove for inspection and cleaning. An innovative protective mesh (Patented) prevents contact with rotating parts of the pump, safeguarding user safety. Bearing and shaft sizing are designed to ensure stress reduction while guaranteeing high reliability under all operating conditions.
CLICK ON THE LINK TO RETURN TO THE PAGE OF POOL PUMPS
Execution:
- Self-priming monobloc centrifugal electric pumps with built-in prefilter.
- Inner basket with Ø 3 mm holes.
- NMP: version with cast iron pump body and fitting.
- B-NMP: version with bronze pump body and fitting.
- Bronze pumps are supplied fully painted.
Uses
- For circulating water in swimming pool filtration systems.
- For clean or slightly dirty water with suspended solids.
Limits of use:
- Liquid temperature up to 60 °C.
- Ambient temperature up to 40 °C. Manometric suction height up to 7 m.
- Maximum permissible final pressure in the pump body 6 bar.
- Continuous service.
Three-phase 15m3/h POOL pump with prefilter Calpeda NMP 32/12S/A 1.5kW self-priming Motor
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- NMP: 3-phase 230/400 V ± 10% up to 3 kW;
- 400/690 V ± 10% from 4 to 7.5 kW.
- NMPM: single-phase 230 V ± 10%, with thermal protector.
- Class F insulation.
- IP X4 protection.
To guide you in your choice, see our guide to submersible pumps.
- BRAND
- CALPEDA
- ALIMENTATION (V.)
- 400
