Pedrollo JSW self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid. Reliable and easy to use, they are recommended for domestic, civil and industrial use, especially for water distribution in conjunction with small or medium autoclave tanks.
CLICK ON THE LINK TO RETURN TO THE SURFACE ELECTRIC PUMPS PAGE

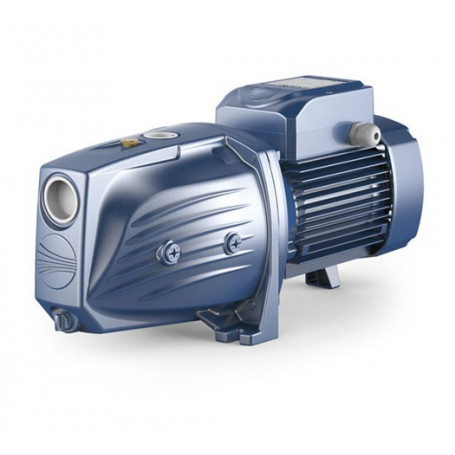

Pedrollo electric pump jsw/3bm v.400 - self-priming
Pedrollo JSW self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid. Reliable and easy to use, they are recommended for domestic, civil and industrial use, especially for water distribution in conjunction with small or medium autoclave tanks.
CLICK ON THE LINK TO RETURN TO THE SURFACE ELECTRIC PUMPS PAGE
Description
They are recommended for pumping clean water and liquids that are chemically non-aggressive to the pump's constituent materials.
Installation is to be carried out indoors or otherwise protected from the weather.
Features
- Liquid type: clean water
- Uses: domestic, civil, industrial
- Uses: water supply, firefighting systems, washing systems, pressurization systems, irrigation, transferring tanks
- Type: surface
- Family: self-priming
Performance range:
- Flow rate up to 160 l/min (9.6 m³/h)
- Head up to 96 m
Limits of use:
- Liquid temperature up to +40 °C
- Ambient temperature from -10 °C up to +40 °C
- Manometric suction height up to 9 m (HS)
- Max pressure in the pump body 10 bar
- Continuous duty S1
- BRAND
- PEDROLLO
- ALIMENTATION (V.)
- 400
- POWER (Kw)
- 1.5
