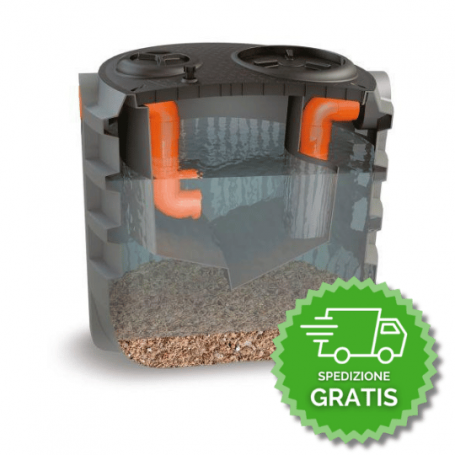

Current static deoliator 5100 liters | 200 cars locations | square surface 8000 m² | 22 l/s

DEOCS5100F Corrugated Static De-oil Extractor.

The DEO CS 5100 F Static De-oiler is designed to treat stormwater runoff from yards, parking lots, garages, body shops, and industrial areas with discharge to Public Sewer (T3).

Made of monolithic high-strength polyethylene tank with corrugated structure, rotational molding ensures constant thickness and strength. The plant integrates a sedimentation chamber for aggregates and a separation chamber for light liquids (oils and greases).

Key Features.

• Capacity: 5,100 liters
  Parking spaces: no. 200
  Yard area: 8,000 m² covered and 4,000 m² uncovered
  Nominal flow rate (NS): 22.0 liters/s
  Standard: UNI EN 858/1-2
  Discharge: to Public Sewer


Compliance and Standards

The static de-oiler fully complies with the following standards and requirements:

• UNI EN 858/1-2
• D.Lgs n. 152 of 03/04/2006 part III
• C.A.M. 2.2.8.2 - Collection, purification and reuse of rainwater

Operation

The system functions as a stilling basin: wastewater from yards and parking lots is purified by sedimentation of heavy materials at the bottom and separation of light liquids at the surface, thus ensuring a discharge that complies with current regulations.

Advantages

• Easy underground installation
• Robust and lightweight construction
• Low maintenance programmable
• Compatible with extensions and telescopic manhole covers

Maintenance

To ensure performance, periodic inspection and cleaning of sedimentation chamber and separation chamber is recommended, as outlined in the technical manual.
