Current static deoliator 4000 liters | 145 cars locations | square surface 5820 m² | 16 l/s

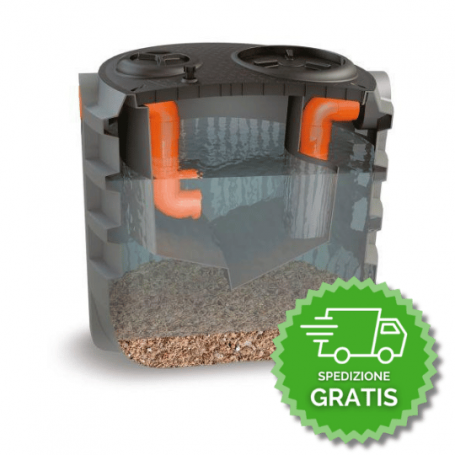

Corrugated Static De-oil Extractor DEO CS 4000 F

The DEOCS4000 F Static De-oiler is the ideal solution for treating rainwater runoff from yards, parking lots, garages, body shops and industrial areas with discharge to Public Sewer (T3).

The monolithic corrugated polyethylene tank, produced by rotational molding with constant thickness and reinforced with ribs, ensures strength and durability. The system is equipped with a sedimentation chamber for aggregates and a separation chamber for oils and light liquids.

Main features.

• Tank capacity: 4,000 liters
• Parking spaces: 145
• Yard area: 5,820 m² covered + 2,910 m² uncovered
• Nominal flow rate (NS): 16.0 liters/s
• Class: 2 - UNI EN 858/1-2
• Discharge: Public Sewer

Standards and Certifications.

The de-oiler complies with the following standards:

• UNI EN 858/1-2
• Legislative Decree no. 152 of 03/04/2006 part III
• C.A.M. 2.2.8.2 Collection, purification and reuse of rainwater

Operation

It functions as a stilling basin: runoff water releases heavy solids to the bottom, while oils and light liquids emerge to the surface and are retained before discharge.

Accessories and maintenance

Equipped with lid, vent, inlet/outlet piping. Recommended accessories: PRO X 400 extensions and CHI Y 400-600 telescopic manhole covers. Annual maintenance required to maintain system efficiency.
