Lowara Submersible Motor 4"
Submersible motors in a coolant bath. The choice of construction materials ensures excellent operating performance , superior quality, safe reliability and ease of installation.
- Motor Power: 1.1 kW
- Power Supply: 230 V
- Motor Type: 4OS Series
Product Code: 107027040
Click on the link to return to the Lowara 4GS

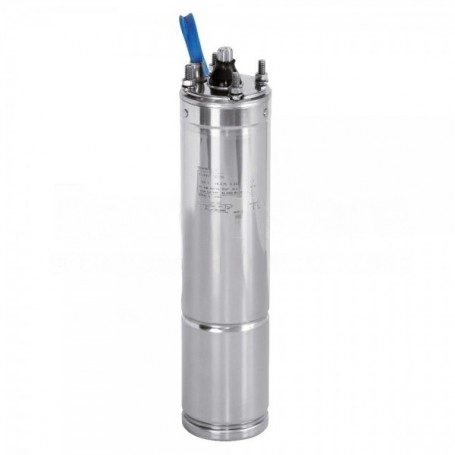

Lowara summer motor 4os11m235 | 4" |v.230 single-phase | kw 1.1 - hp 1.5 | code 107027040
Lowara Submersible Motor 4"
Submersible motors in a coolant bath. The choice of construction materials ensures excellent operating performance , superior quality, safe reliability and ease of installation.
- Motor Power: 1.1 kW
- Power Supply: 230 V
- Motor Type: 4OS Series
Product Code: 107027040
Click on the link to return to the Lowara 4GS
TECHNICAL FEATURES
- Stainless steel outer jacket
- Shaft overhang and coupling dimensions to NEMA standards
- Rewindable stator
- Insulation class F motor
- IP68 degree of protection
- Filling liquid complying with standards for oils in contact with foodstuffs
- Compensating bellows for internal liquid expansion
- Axial load supported by angular contact ball bearings
- Mechanical seal with sand protection
- Maximum immersion depth 150 m
- Water pH: 4 ÷ 8
- Maximum number of hourly starts equally distributed:
- 30 for direct starting
- 20 for impedance starting
- Maximum allowed deviation on line voltage from rated voltage:
- 230 V ± 10%
- 400 V ± 10%
- Axial thrust:
- 3000 N from 0.37 to 2.2 kW
- 6500 N from 3 to 7.5 kW
- Removable power cable equipped with watertight connector
- Horizontal operation up to 2.2 kW
- Applications with Inverter
- BRAND
- LOWARA
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 1.1
- INCHES
- 4"
- PUMP TYPE
- SUBMERGED MOTOR
ELETTROPOMPA SOMMERA LOWARA 4GS - (104070210)
Motor Power: 1.5 Hp
MAX flow rate: 90 l/min
MAX head: 94 m
Power Supply: 230 V
Motor Type: 4OS Series
Click on the link to return to the Lowara 4GS
