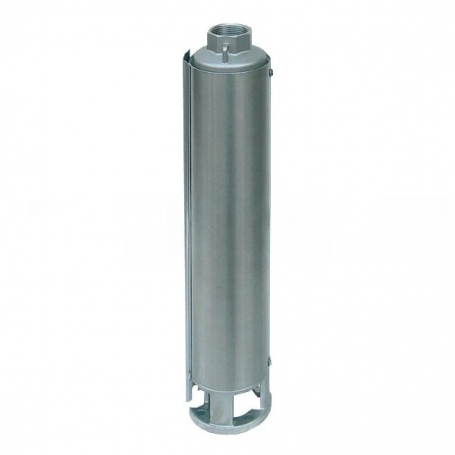

LOWARA PUMP BODY 4GS11 | 4" | HP 1.5 - kW 1.1 | code 102050240
zoom_out_map
chevron_left chevron_right

Lowara 4GS11 hydraulic body for Hp 4" submersible motor .

  • Lowara 4" hydraulic body, 4GS11 is a multi-impeller submersible electric pump.
  • With abrasion-resistant construction: the front washer combined with polycarbonate floating impellers ensure an extremely wear-resistant configuration.
  • Max amount of sand tolerated 150 g/m3.
  • Stainless steel pump construction ensures high resistance to corrosion and gives robustness and reliability over time.
  • Lowara synonymous with quality, reliability, ensuring a solution for all water pumping problems.
  • The Lowara 4GS11 hydraulic body is designed for 1.5 Hp submersible motors, with a diameter of 4".

Click on the link to return to the Lowara 4GS

Available Now


Lowara pump body 4gs11 | 4" | hp 1.5 - kw 1.1 | code 102050240

Lowara 4GS11 hydraulic body for Hp 4" submersible motor .

  • Lowara 4" hydraulic body, 4GS11 is a multi-impeller submersible electric pump.
  • With abrasion-resistant construction: the front washer combined with polycarbonate floating impellers ensure an extremely wear-resistant configuration.
  • Max amount of sand tolerated 150 g/m3.
  • Stainless steel pump construction ensures high resistance to corrosion and gives robustness and reliability over time.
  • Lowara synonymous with quality, reliability, ensuring a solution for all water pumping problems.
  • The Lowara 4GS11 hydraulic body is designed for 1.5 Hp submersible motors, with a diameter of 4".

Click on the link to return to the Lowara 4GS

€166.70 (tax incl.) Iva inclusa
€546.56 -69.5%
check Product Available in Stock - Shipped in 24/48h
migliori ecommerce italia forniture industriali
Migliori E-commerce d'Italia per forniture industriali - la Repubblica
migliori ecommerce italia forniture industriali
24 mesi di garanzia
Icona supporto telefonico
Hai bisogno di ulteriori informazioni? Contattaci

Advantages of Lowara Submersible Pump 4GS11

  1. High efficiency: Thanks to its advanced design and state-of-the-art technology, the pump ensures optimal energy efficiency, reducing electricity consumption and operating costs.
  2. Reliability: The pump is built with high-quality materials and reliable technologies, ensuring a long service life and consistent performance over time.
  3. High pumping capacity: With a flow rate of 90 liters per minute, the pump can extract large volumes of water from deep wells quickly and efficiently.
  4. Adjustable pressure: With a maximum pressure of 9 bar, the pump offers the flexibility to adapt to various usage needs, allowing the pressure to be adjusted to suit specific applications.
  5. Adaptability: The pump is designed to be easily installed and adapted to a wide range of wells and water systems, offering a versatile solution for various applications.
  6. Low maintenance: Due to its robust construction and low-maintenance design, the pump requires minimal maintenance over time, reducing costs and associated inconveniences.
  7. All components FDA approved.
  8. Pre-mounted check valve.
  9. Overall, the Lowara 4GS11 submersible pump is a reliable and cost-effective choice for efficient extraction of water from wells, offering high performance, durability and ease of use.

Technical Details Lowara submersible electric pump

Type 4GS11 series submersible pump.
Version Hydraulic body only. ( motor not included ) .
Number of stages 14.
Power rating Hydraulic body for 1.1 kW ( 1.5 HP ) motor.
Flow rate Up to 90 l/min (5.4 m³/h).
Total head Up to 94 m of water column.
Maximum immersion depth 150 meters (with 4OS motors).
Overall diameter 99 mm (including cable cover).
Versions 1GSL - 2GS - 4GS - 6GS delivery port from Rp 1" 1/4.
Liquid temperature 35 °C.
Check valve. Pre-mounted.
Max amount of sand tolerated. 150 gr/m3.

Notes:

  • Flow rate and head may vary depending on installation conditions.
  • Please refer to the instruction manual for more precise information.

Uses and Applications Submersible 4GS11

  • Water supply from well for domestic uses.
  • Effective and reliable irrigation.
  • Industrial applications for constant performance.
  • Firefighting.

Lowara Submersible Application Sectors.

  • Civil: suitable for residential well uses.
  • Agricultural: for efficient irrigation systems.
  • Industrial: for high performance applications.

102050240
BRAND
LOWARA
POWER (Kw)
1.1
INCHES
4"
PUMP TYPE
ONLY HYDRAULIC PART
