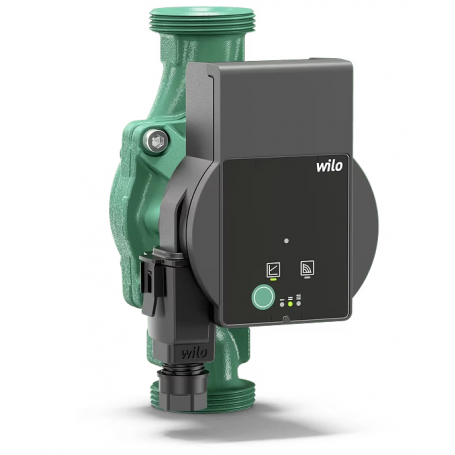

WILO ELECTRONIC CIRCULATOR SINGLE ATMOS PICO 30/1-6 RP 1"1/4 180
ATMOS PICO 30/1-6 single standard electronic wet rotorcirculator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control.
Special Features / Product Advantages :
- Convenient to use thanks to green button technology with its familiar user interface and essential settings and functions
- Energy-efficient EC motor technology with six characteristic curves
- Compact design for quick and easy installation and replacement
- Reliable operation due to proven technology.
Accettiamo i seguenti metodi di pagamento
Description:
ATMOS PICO 30/1-6 single standard electronic wet-rotor ATMOS PICO 30/1-6 circulator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control.
Key readout:
Example: Wilo-Atmos PICO 25/1-6-130
Atmos PICO > High-efficiency pump (nozzle pump), electronically regulated
25/ > Nominal connection diameter
1-6 > Nominal head range [m]
130 > Construction length
Application:
Water heating systems of all kinds, air conditioning systems, industrial circulation systems.
Technical data (referring to the whole range):
- Fluid temperature -10 °C to +95 °C
- Mains power supply 1~230 V, 50 Hz
- IPX2D degree of protection
- Rp ½, Rp 1 and Rp 1¼ union connection
- Max. operating pressure 10 bar
- BRAND
- WILO
